RP1195C

Active

Hammond Manufacturing

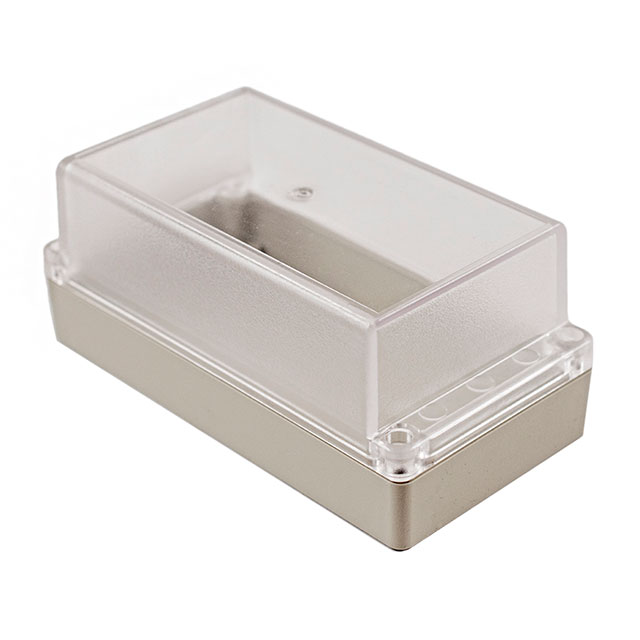

BOX ABS GRAY/CLR 6.54"L X 3.4"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ABS GRAY/CLR 6.54"L X 3.4"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1195C

Area (L x W)	143 cm˛
Area (L x W)	22.1 in˛
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	70.1 mm
Height [z]	2.76 in
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	166.12 mm
Size / Dimension [x]	6.54 in
Size / Dimension [y]	86.36 mm
Size / Dimension [y]	3.4 in
Thickness	2.03 mm
Thickness	0.08 "

Part	Height [z]	Height [z]	Material Flammability Rating	Area (L x W)	Area (L x W)	Design	Container Type	Thickness	Thickness	Material	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Hammond Manufacturing RP1195C	70.1 mm	2.76 in	UL94 HB	143 cm˛	22.1 in˛	Cover Included	Box	2.03 mm	0.08 "	ABS	Clear Cover/Door Gray	166.12 mm	6.54 in	86.36 mm	3.4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 18.76

General part information

Box ABS Gray, Clear Cover/Door Cover Included 6.540" L x 3.400" W (166.12mm x 86.36mm) X 2.760" (70.10mm)
