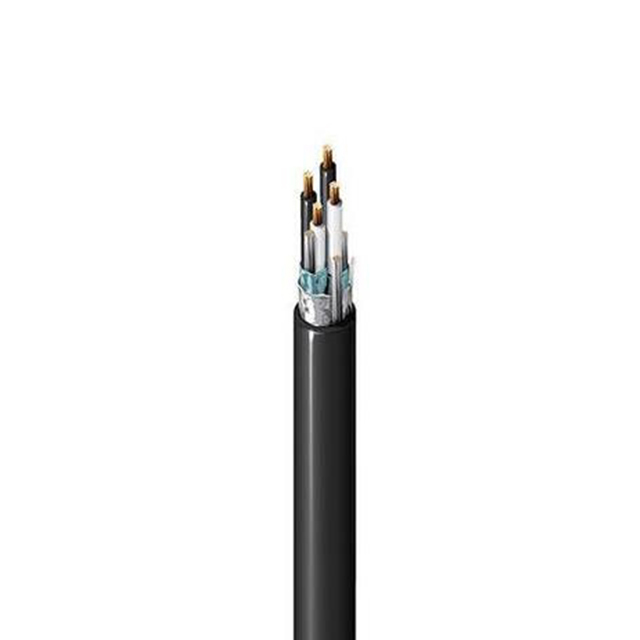

1040A 0105000

Active

Belden Inc.

MULTI-PAIR 12COND 16AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12COND 16AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1040A 0105000

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	24
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	17.02 mm
Jacket (Insulation) Diameter [diameter]	0.67 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Number of Conductors	12
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	16 AWG

Part	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket Color	Shield Type	Conductor Material	Conductor Insulation	Wire Gauge	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Features
Belden Inc. 1040A 0105000	Multi-Pair	Poly-Vinyl Chloride (PVC)	17.02 mm	0.67 in	12	Black	Foil	Copper Bare	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	16 AWG	100 %	7	24	Aluminum	Drain Wire Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 7.49

General part information

12 (6 Pair Twisted) Conductor Multi-Pair Cable Black 16 AWG Foil 5000' (1524.0m)
