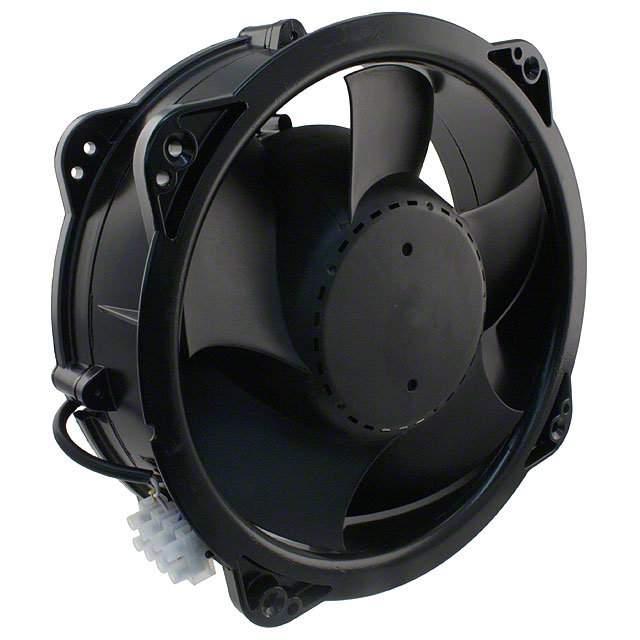

W1G208-BA73-52

Active

ebm-papst Inc.

FAN AXIAL 232X80MM 48VDC TERM

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 232X80MM 48VDC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	W1G208-BA73-52

Air Flow	17.3 m³/min
Air Flow	618 CFM
Approval Agency	VDE, CCC, UL, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	51000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	74 dB(A)
Operating Temperature [Max] [custom]	72 °C
Operating Temperature [Max] [custom]	162 °F
Operating Temperature [Min] [custom]	-13 °F
Operating Temperature [Min] [custom]	-25 °C
Power (Watts)	96 W
RPM	3500 RPM
Size / Dimension [diameter]	232 mm
Termination	2 Terminals
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	57 VDC
Voltage Range [Min]	36 VDC
Weight	5.1 lbs
Weight	2.3 kg
Width [y]	80 mm

Part	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Weight	Weight	Termination	Bearing Type	Fan Type	Power (Watts)	Air Flow	Air Flow	Material - Frame	RPM	Noise	Lifetime @ Temp.	Material - Blade	Approval Agency	Width [y]	Size / Dimension [diameter]	Voltage - Rated [custom]
ebm-papst Inc. W1G208-BA73-52	36 VDC	57 VDC	72 °C	-13 °F	162 °F	-25 °C	5.1 lbs	2.3 kg	2 Terminals	Ball	Tubeaxial	96 W	17.3 m³/min	618 CFM	Aluminum	3500 RPM	74 dB(A)	51000 Hrs	Plastic	CCC CSA UL VDE	80 mm	232 mm	48 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Round - 232mm Dia Ball 618.0 CFM (17.30m³/min) 2 Terminals
