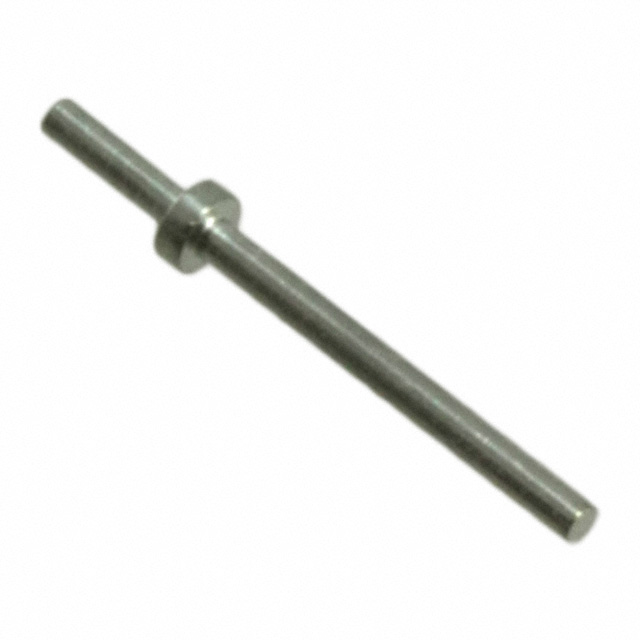

H3108-01 - H3108-01

H3108-01

Active
Harwin Inc.

TERMINAL, TURRET, 0.55MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
H3108-01 - H3108-01

H3108-01

Active
Harwin Inc.

TERMINAL, TURRET, 0.55MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationH3108-01
Board Thickness0.039 in
Board Thickness1 mm
Contact FinishTin
Contact MaterialBrass
Flange Diameter [diameter]0.99 mm
Flange Diameter [diameter]0.039 in
InsulationNon-Insulated
Length - Above Flange0.207 in
Length - Above Flange5.27 mm
Length - Overall [x]0.299 in
Length - Overall [x]7.59 mm
Mounting Hole Diameter [Max] [diameter]0.56 mm
Mounting Hole Diameter [Max] [diameter]0.022 "
Mounting Hole Diameter [Min] [diameter]0.02 "
Mounting Hole Diameter [Min] [diameter]0.51 mm
Mounting TypeThrough Hole
Pin Size - Above Flange [diameter]0.021 "
Pin Size - Above Flange [diameter]0.53 mm
Terminal StyleSingle End
Terminal TypePC Pin
TerminationSwage

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.31
10$ 0.27
25$ 0.24
50$ 0.22
100$ 0.21
250$ 0.19
500$ 0.18
1000$ 0.15
3000$ 0.14
NewarkEach 10$ 0.21
100$ 0.17
500$ 0.15
1000$ 0.14
2500$ 0.13
10000$ 0.12

Description

General part information

H3108 Series

PC Pin Terminal Connector Through Hole Tin 0.021" (0.53mm) Dia
