67400-242-AB
ActiveInventus Power
CORD 18AWG 1-15P - 320-C7 6'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
67400-242-AB
ActiveInventus Power
CORD 18AWG 1-15P - 320-C7 6'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 67400-242-AB |
|---|---|
| 1st Connector | NEMA 1-15P |
| 2nd Connector | IEC 320-C7 |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | NISPT-2 |
| Current Rating (Amps) | 7 A |
| Length | 6 ft |
| Length | 1.83 m |
| Number of Conductors | 2 |
| Operating Temperature | 105 C |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.28 | |
| 10 | $ 2.98 | |||
| 25 | $ 2.82 | |||
| 75 | $ 2.76 | |||
| 150 | $ 2.63 | |||
| 300 | $ 2.30 | |||
| 525 | $ 2.23 | |||
| 1050 | $ 1.90 | |||
| 2550 | $ 1.77 | |||
Description
General part information
67400 Series

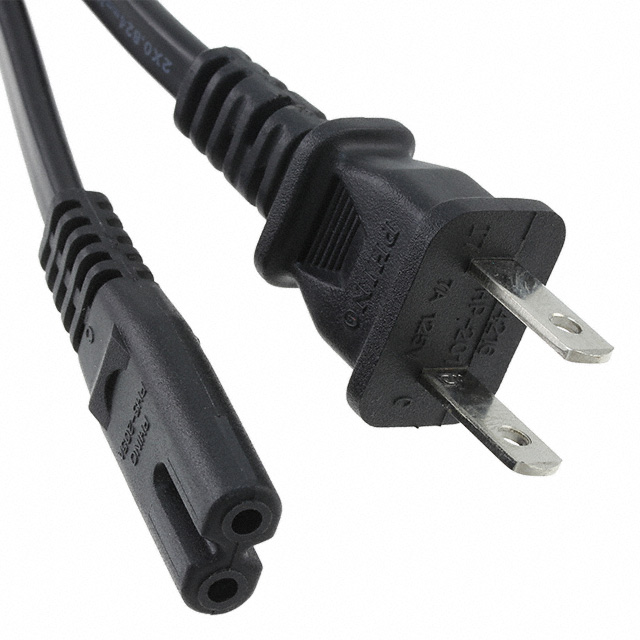

6.00' (1.83m) Power Cord Black NEMA 1-15P To IEC 320-C7 NISPT-2
