SD-MMN06-MMBBL-S70-000

Active

Adam Tech

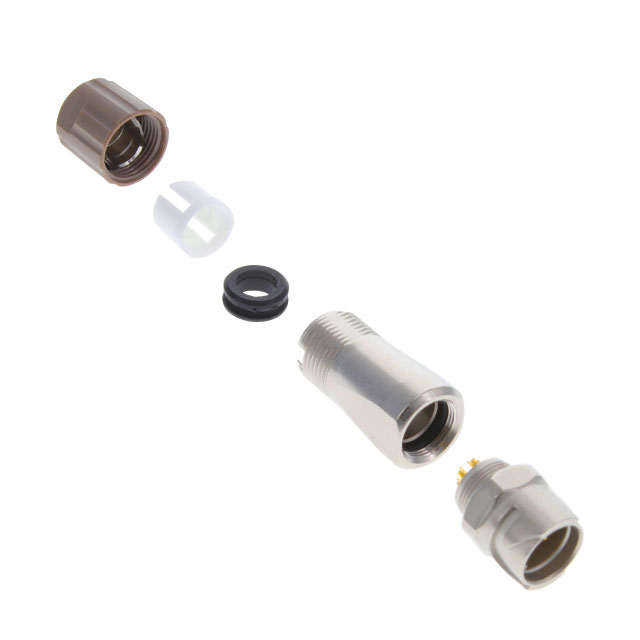

CONN RCPT MALE 6POS SOLDER CUP

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT MALE 6POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SD-MMN06-MMBBL-S70-000

Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [custom]	5 mm
Cable Opening [custom]	0.197 in
Color	Brown, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	DIN
Shielding	Shielded

Part	Contact Finish Thickness - Mating	Features	Contact Material	Shell Size - Insert	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Shell Material	Ingress Protection	Fastening Type	Contact Finish - Mating	Color	Orientation	Backshell Material, Plating	Connector Type	Insert Material	Mounting Type	Shielding	Material Flammability Rating	Primary Material
Adam Tech SD-MMN06-MMBBL-S70-000	Flash	Backshell Cable Clamp Strain Relief	Phosphor Bronze	DIN	6	5 mm	0.197 in	Nickel	Zinc Alloy	IP67 - Dust Tight Waterproof	Bayonet Lock	Gold	Brown Silver	Keyed	Nickel Zinc Alloy	Male Pins Receptacle	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Shielded	UL94 V-0	Metal
