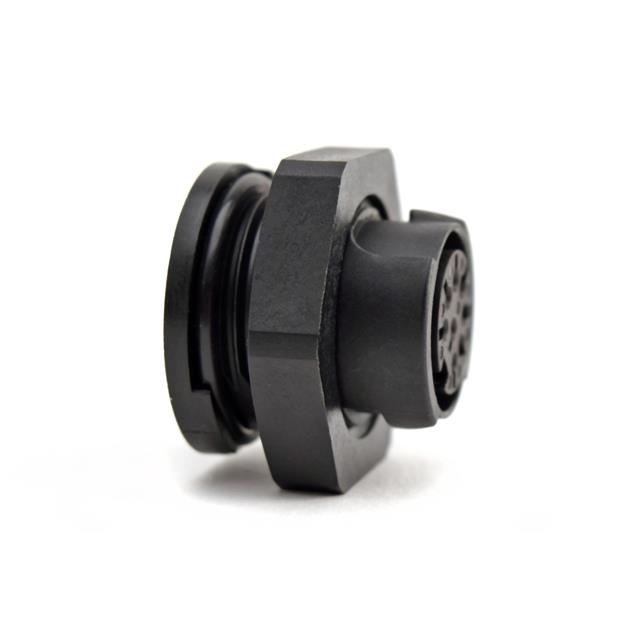

C09131G0041095U

Active

Amphenol Sine Systems Corp

FEMALE RECEPTACLE, QUICKLOCK, SI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 M16 Q Quicklock Datasheet

C09131G0041095U

Active

Amphenol Sine Systems Corp

FEMALE RECEPTACLE, QUICKLOCK, SI

Deep-Dive with AI

DocumentsC091 M16 Q Quicklock Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C09131G0041095U

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating (Amps)	10 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	M16-4
Shielding	Unshielded
Voltage Rating	150 VDC

C09131G Series

Part	Color	Connector Type	Material Flammability Rating	Primary Material	Insert Material	Contact Finish - Mating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Shell Size - Insert	Ingress Protection	Orientation	Current Rating (Amps)	Number of Positions
Amphenol Sine Systems Corp C09131G0031095U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Silver	150 VDC	100 °C	-40 °C	Unshielded	M16-3	IP68 - Dust Tight Waterproof	Keyed	10 A
Amphenol Sine Systems Corp C09131G0122095U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Gold	32 V	100 °C	-40 °C	Unshielded	M16-12	IP68 - Dust Tight Waterproof	Keyed	3 A	12
Amphenol Sine Systems Corp C09131G0051005U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Silver	100 V	100 °C	-40 °C	Unshielded	M16-5	IP68 - Dust Tight Waterproof	Keyed	7 A
Amphenol Sine Systems Corp C09131G0192005U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Gold	32 V	100 °C	-40 °C	Unshielded	M16-19	IP68 - Dust Tight Waterproof	Keyed	3 A	19
Amphenol Sine Systems Corp C09131G1142095U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Gold	32 V	100 °C	-40 °C	Unshielded	M16-14	IP68 - Dust Tight Waterproof	Keyed	3 A	14
Amphenol Sine Systems Corp C09131G0052095U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Gold	100 V	100 °C	-40 °C	Unshielded	M16-5	IP68 - Dust Tight Waterproof	Keyed	7 A
Amphenol Sine Systems Corp C09131G1052005U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Gold	32 V	100 °C	-40 °C	Unshielded	M16-5	IP68 - Dust Tight Waterproof	Keyed	7 A
Amphenol Sine Systems Corp C09131G0041095U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Silver	150 VDC	100 °C	-40 °C	Unshielded	M16-4	IP68 - Dust Tight Waterproof	Keyed	10 A	4
Amphenol Sine Systems Corp C09131G0062005U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Gold	100 V	100 °C	-40 °C	Unshielded	M16-6	IP68 - Dust Tight Waterproof	Keyed	7 A	6
Amphenol Sine Systems Corp C09131G1052095U	Black	Receptacle Female Sockets	UL94 V-0	Plastic	Thermoplastic	Gold	32 V	100 °C	-40 °C	Unshielded	M16-5	IP68 - Dust Tight Waterproof	Keyed	7 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.34
		10	$ 6.40
		25	$ 5.77
		50	$ 5.35
		100	$ 4.97
		250	$ 4.52
		500	$ 4.21
		1000	$ 3.94
		2500	$ 3.65

Description

General part information

C09131G Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

C091 M16 Q Quicklock

Datasheet
