E1062S.18.10

Active

Prysmian Group

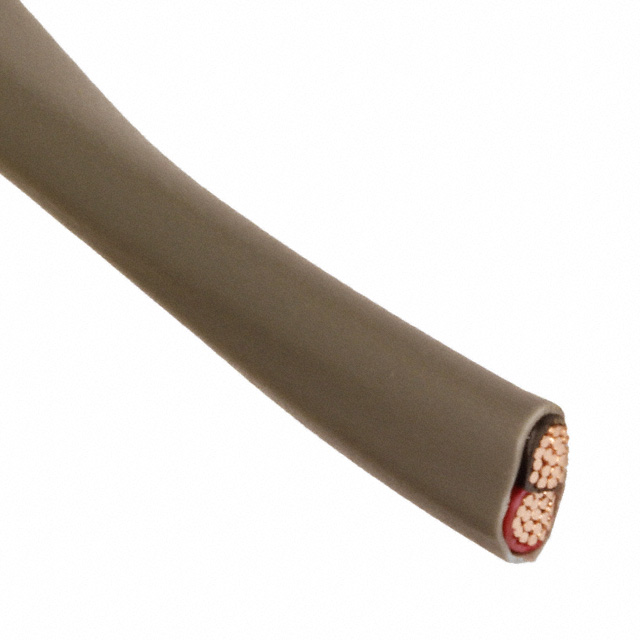

CABLE 2COND 12AWG GRAY 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 12AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	E1062S.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand [custom]	19 Strands
Conductor Strand [diameter]	0.0185 in
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	6.6 mm
Jacket (Insulation) Diameter [diameter]	0.26 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Ratings	ASTM B-3
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	12 AWG

Part	Length [x]	Length [x]	Ratings	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Conductor Material	Jacket (Insulation) Material	Conductor Strand [diameter]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Voltage	Jacket Color	Cable Type	Conductor Insulation	Usage	Length	Length
Prysmian Group E1062S.18.10	500 '	152.4 m	ASTM B-3	2	0.015 in	0.381 mm	Rip Cord	Copper Annealed Bare	Poly-Vinyl Chloride (PVC) Riser	0.0185 in	19 Strands	6.6 mm	0.26 in	12 AWG	300 V	Gray	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Alarm Security Sound
Prysmian Group E1062S.41.10	100 ft	30.5 m	ASTM B-3	2	0.015 in	0.381 mm	Rip Cord	Copper Annealed Bare	Poly-Vinyl Chloride (PVC) Riser	0.0185 in	19 Strands	6.6 mm	0.26 in	12 AWG	150 V 300 V	Gray	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Alarm Security Sound	1000 ft	304.8 m
Prysmian Group E1062S.41.02			ASTM B-3	2	0.015 in	0.381 mm	Rip Cord	Copper Bare	Poly-Vinyl Chloride (PVC) Riser	0.0185 in	19 Strands	6.6 mm	0.26 in	12 AWG	300 V		Multi-Conductor	Poly-Vinyl Chloride (PVC)		1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25000	$ 0.52

General part information

2 Conductor Multi-Conductor Cable Gray 12 AWG 500.0' (152.4m)

Technical documentation and resources

No documents available
