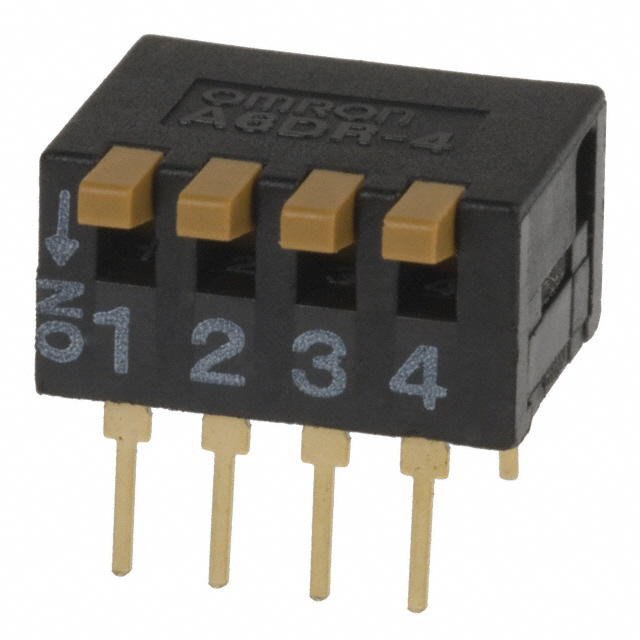

A6DR-4100

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.03A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6DR-4100

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.03A 30V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6DR-4100

Actuator Level	Raised
Actuator Type	Piano
Circuit	SPST
Contact Finish	Gold
Current Rating (Amps)	30 mA
Electrical Life	2000 Steps
Features	IP64 - Dust Tight, Water Resistant
Height Above Board	0.292 in
Height Above Board	7.41 mm
Length	0.479 in
Length	12.17 mm
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	30 VDC
Washable	True

A6D Series

Part	Circuit	Actuator Type	Mounting Type	Contact Finish	Features	Actuator Level	Electrical Life	Voltage Rating	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board	Height Above Board	Length [x]	Length [x]	Current Rating (Amps)	Pitch [x]	Pitch	Pitch [x]	Number of Positions	Length	Length
Omron Electronics Inc-EMC Div A6D-2100	SPST	Slide (Standard)	Through Hole	Gold	IP64 - Dust Tight Water Resistant	Flush Recessed	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	4.4 mm	0.173 in	0.279 "	7.1 mm	30 mA	0.1 in	Full	2.54 mm	2
Omron Electronics Inc-EMC Div A6D-3103	SPST	Slide (Standard)	Through Hole	Gold	IP64 - Dust Tight Water Resistant	Raised	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	5.4 mm	0.213 in			30 mA	0.1 in	Full	2.54 mm		9.63 mm	0.379 in
Omron Electronics Inc-EMC Div A6DR-4100	SPST	Piano	Through Hole Right Angle	Gold	IP64 - Dust Tight Water Resistant	Raised	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	7.41 mm	0.292 in			30 mA	0.1 in	Full	2.54 mm	4	12.17 mm	0.479 in
Omron Electronics Inc-EMC Div A6D-0100	SPST	Slide (Standard)	Through Hole	Gold	IP64 - Dust Tight Water Resistant	Flush Recessed	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	4.4 mm	0.173 in			30 mA	0.1 in	Full	2.54 mm	10	27.41 mm	1.079 in
Omron Electronics Inc-EMC Div A6D-8100	SPST	Slide (Standard)	Through Hole	Gold	IP64 - Dust Tight Water Resistant	Flush Recessed	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	4.4 mm	0.173 in	0.879 "	22.33 mm	30 mA	0.1 in	Full	2.54 mm	8
Omron Electronics Inc-EMC Div A6DR-6100	SPST	Piano	Through Hole Right Angle	Gold	IP64 - Dust Tight Water Resistant	Raised	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	7.41 mm	0.292 in			30 mA	0.1 in	Full	2.54 mm	6	17.25 mm	0.679 in
Omron Electronics Inc-EMC Div A6DR-2100	SPST	Piano	Through Hole Right Angle	Gold	IP64 - Dust Tight Water Resistant	Raised	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	7.41 mm	0.292 in	0.279 "	7.1 mm	30 mA	0.1 in	Full	2.54 mm	2
Omron Electronics Inc-EMC Div A6D-4103	SPST	Slide (Standard)	Through Hole	Gold	IP64 - Dust Tight Water Resistant	Raised	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	5.4 mm	0.213 in			30 mA	0.1 in	Full	2.54 mm	4	12.17 mm	0.479 in
Omron Electronics Inc-EMC Div A6D-7103	SPST	Slide (Standard)	Through Hole	Gold	IP64 - Dust Tight Water Resistant	Raised	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	5.4 mm	0.213 in	0.779 in	19.79 mm	30 mA	0.1 in	Full	2.54 mm	7
Omron Electronics Inc-EMC Div A6D-5100	SPST	Slide (Standard)	Through Hole	Gold	IP64 - Dust Tight Water Resistant	Flush Recessed	2000 Steps	30 VDC	PC Pin	-20 C	70 °C	4.4 mm	0.173 in			30 mA	0.1 in	Full	2.54 mm		14.7 mm	0.579 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.17
		10	$ 4.96
		50	$ 4.20
		100	$ 3.92
		250	$ 3.56
		500	$ 3.30
		1000	$ 3.06
		2500	$ 2.78
