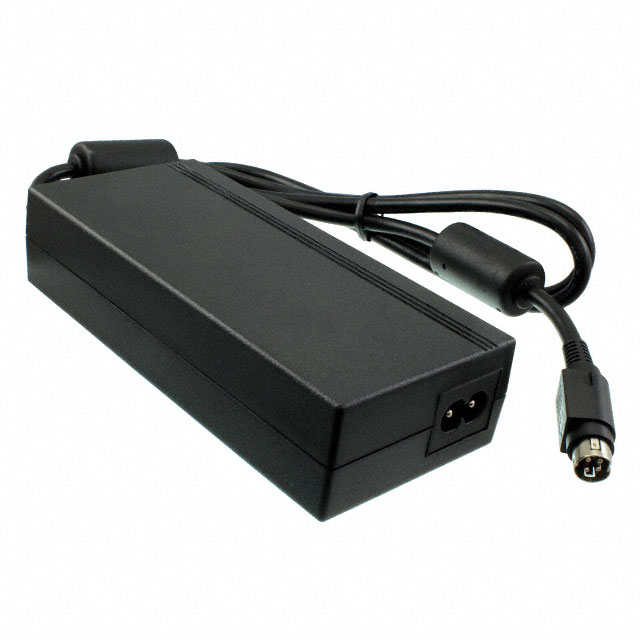

DTM110PW480C8

Active

TDK-LAMBDA

AC/DC DESKTOP ADAPTER 48V 110W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC DESKTOP ADAPTER 48V 110W

Technical Specifications

Parameters and characteristics for this part

Specification	DTM110PW480C8

Applications	ITE (Commercial), Medical
Approval Agency	CE
Cord Length	1 m
Cord Length	39.4 "
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	110 W
Region Utilized	International
Size / Dimension [x]	5.51 "
Size / Dimension [x]	140 mm
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V
Weight	1.7 lbs
Weight	780 g

Part	Region Utilized	Cord Length	Cord Length	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Input Type	Input Connector	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Form	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector	Voltage - Output
TDK-LAMBDA DTM110PW150C8	International	1 m	39.4 "	ITE (Commercial) Medical	5.51 "	1.3 "	140 mm	63 mm	33 mm	2.48 in	CoC Tier 2 Level VI	1.7 lbs	780 g	-20 C	60 °C	CE	Cord	IEC 320-C8	150 mW	7.34 A	Desktop (Class II)	110 W	90 VAC	264 VAC	4 Pin	Power DIN	15 VDC
TDK-LAMBDA DTM110PW280C8	International	1 m	39.4 "	ITE (Commercial) Medical	5.51 "	1.3 "	140 mm	63 mm	33 mm	2.48 in	CoC Tier 2 Level VI	1.7 lbs	780 g	-20 C	60 °C	CE	Cord	IEC 320-C8	150 mW	3.93 A	Desktop (Class II)	110 W	90 VAC	264 VAC	4 Pin	Power DIN	28 V
TDK-LAMBDA DTM110PW480C8	International	1 m	39.4 "	ITE (Commercial) Medical	5.51 "	1.3 "	140 mm	63 mm	33 mm	2.48 in	CoC Tier 2 Level VI	1.7 lbs	780 g	-20 C	60 °C	CE	Cord	IEC 320-C8	150 mW		Desktop (Class II)	110 W	90 VAC	264 VAC	4 Pin	Power DIN	48 V
TDK-LAMBDA DTM110PW190C8	International	1 m	39.4 "	ITE (Commercial) Medical	5.51 "	1.3 "	140 mm	63 mm	33 mm	2.48 in	CoC Tier 2 Level VI	1.7 lbs	780 g	-20 C	60 °C	CE	Cord	IEC 320-C8	150 mW		Desktop (Class II)	110 W	90 VAC	264 VAC	4 Pin	Power DIN	19 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48V 110 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
