09155083101

Active

HARTING Technology Group

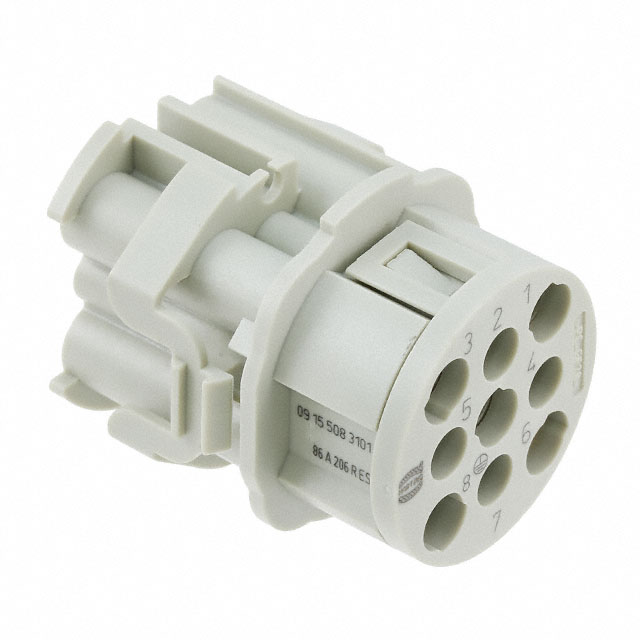

HAN F+B 4/4-F

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN F+B 4/4-F

Technical Specifications

Parameters and characteristics for this part

Specification	09155083101

Connector Type	Insert without Contacts
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	4
Number of Positions	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	400 V

Part	Gender	Connector Type	Current Rating (Amps)	Housing Material	Termination Style	Number of Positions	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating
HARTING Technology Group 09155083101	Female	Insert without Contacts	16 A	Polycarbonate (PC)	Crimp	4	Ground	125 °C	-40 °C	UL94 V-0	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts 4+4+Ground Position Crimp
