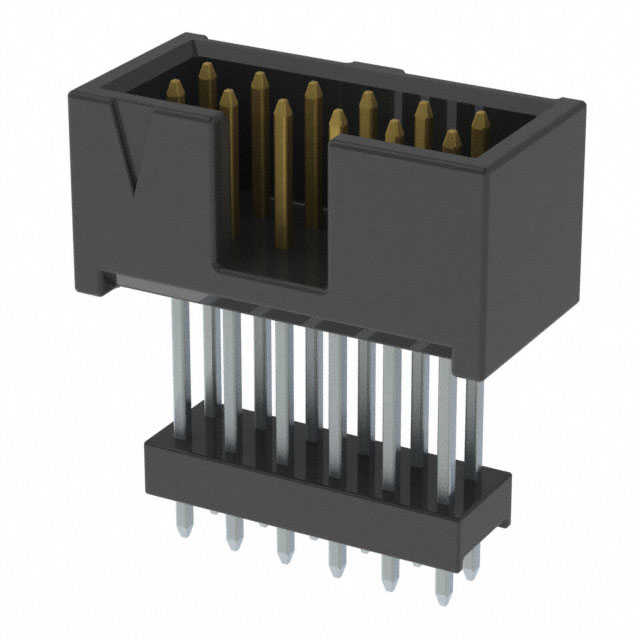

ZSS-106-03-L-D-702

Active

Samtec Inc.

CONN HDR .100" 12POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZSS-106-03-L-D-702

Active

Samtec Inc.

CONN HDR .100" 12POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-106-03-L-D-702

null

ZSS-106 Series

Part	Fastening Type	Contact Finish - Post	Features	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Material	Material Flammability Rating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Style	Contact Shape	Number of Positions	Mounting Type	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Shrouding	Insulation Height	Insulation Height	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Color	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. ZSS-106-01-F-S-540	Push-Pull	Tin	Keying Slot	Male Pin	3 µin	0.076 µm	All	1	-55 °C	125 °C	Solder	Polyester Glass Filled	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	0.09 "	2.29 mm	Elevated Header	Board to Board Cable	Square	6	Through Hole	3 A	6.35 mm	0.25 in	Gold	Shrouded - 4 Wall	0.54 in	13.72 mm	0.63 "	16 mm	Black
Samtec Inc. ZSS-106-09-T-D-1318	Push-Pull	Tin	Keying Slot	Male Pin			All	2	-55 °C	105 ░C	Solder	Polyester Glass Filled	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	0.112 in	2.84 mm	Elevated Header	Board to Board Cable	Square	12	Through Hole	3 A	6.35 mm	0.25 in		Shrouded - 4 Wall					Black	1.318 in	33.48 mm	2.54 mm	0.1 in
Samtec Inc. ZSS-106-08-L-D-1165	Push-Pull	Tin	Keying Slot	Male Pin	10 çin	0.25 çm	All	2	-55 °C	125 °C	Solder	Polyester Glass Filled	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm			Elevated Header	Board to Board Cable	Square	12	Through Hole	3 A	6.35 mm	0.25 in	Gold	Shrouded - 4 Wall	1.165 in	29.59 mm			Black			2.54 mm	0.1 in	1.33 in	33.78 mm	0.165 in	4.19 mm
Samtec Inc. ZSS-106-03-L-D-702
Samtec Inc. ZSS-106-04-S-D-810
Samtec Inc. ZSS-106-09-G-S-1315	Push-Pull	Gold	Keying Slot	Male Pin	10 çin	0.25 çm	All	1	-55 °C	125 °C	Solder	Polyester Glass Filled	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	0.115 in	2.92 mm	Elevated Header	Board to Board Cable	Square	6	Through Hole	3 A	6.35 mm	0.25 in	Gold	Shrouded - 4 Wall	1.315 in	33.4 mm			Black									3 µin	0.076 µm
Samtec Inc. ZSS-106-09-L-D-1315-LL	Push-Pull	Tin	Keying Slot	Male Pin	10 çin	0.25 çm	All	2	-55 °C	125 °C	Kinked Pin Solder	Polyester Glass Filled	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	0.115 in	2.92 mm	Elevated Header	Board to Board Cable	Square	12	Through Hole	3 A	6.35 mm	0.25 in	Gold	Shrouded - 4 Wall	1.315 in	33.4 mm			Black			2.54 mm	0.1 in
Samtec Inc. ZSS-106-01-F-S-500	Push-Pull	Tin	Keying Slot	Male Pin	3 µin	0.076 µm	All	1	-55 °C	125 °C	Solder	Polyester Glass Filled	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	0.13 in	3.3 mm	Elevated Header	Board to Board Cable	Square	6	Through Hole	3 A	6.35 mm	0.25 in	Gold	Shrouded - 4 Wall	0.5 in	12.7 mm	0.63 "	16 mm	Black
Samtec Inc. ZSS-106-03-F-S-700	Push-Pull	Tin	Keying Slot	Male Pin	3 µin	0.076 µm	All	1	-55 °C	125 °C	Solder	Polyester Glass Filled	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	0.13 in	3.3 mm	Elevated Header	Board to Board Cable	Square	6	Through Hole	3 A	6.35 mm	0.25 in	Gold	Shrouded - 4 Wall	0.7 in	17.78 mm			Black					0.83 in	21.08 mm
Samtec Inc. ZSS-106-03-L-D-615

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.42

Description

General part information

ZSS-106 Series

Connector Header position

Documents

Technical documentation and resources
