M20-7920342R

Active

Harwin Inc.

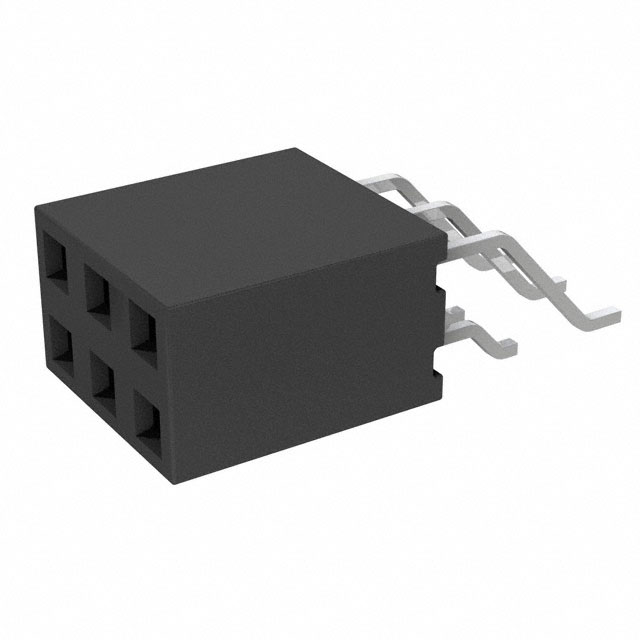

CONN, R/A RCPT, 6POS, 2ROW, 2.54MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONN, R/A RCPT, 6POS, 2ROW, 2.54MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M20-7920342R

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.59 µin
Contact Finish Thickness - Mating	0.015 µm
Contact Finish Thickness - Post	2.03 µm
Contact Finish Thickness - Post	80 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Type	Connector Type	Contact Finish - Post	Applications	Material Flammability Rating	Contact Shape	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Color	Number of Rows	Fastening Type	Contact Material
Harwin Inc. M20-7920442R	2.54 mm	0.1 in	Polyamide (PA9T) Nylon 9T Glass Filled	Gold	0.197 in	5 mm	Surface Mount Right Angle	0.59 µin	0.015 µm	0.1 in	2.54 mm	3 A	2.03 µm	80 µin	Solder	Forked	Receptacle	Tin	General Purpose	UL94 V-0	Square	All	-40 °C	105 ░C	8	Black	2	Push-Pull	Phosphor Bronze
Harwin Inc. M20-7920342R	2.54 mm	0.1 in	Polyamide (PA9T) Nylon 9T Glass Filled	Gold	0.197 in	5 mm	Surface Mount Right Angle	0.59 µin	0.015 µm	0.1 in	2.54 mm	3 A	2.03 µm	80 µin	Solder	Forked	Receptacle	Tin	General Purpose	UL94 V-0	Square	All	-40 °C	105 ░C	6	Black	2	Push-Pull	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
