084289-000
ActiveTE Connectivity Aerospace, Defense and Marine

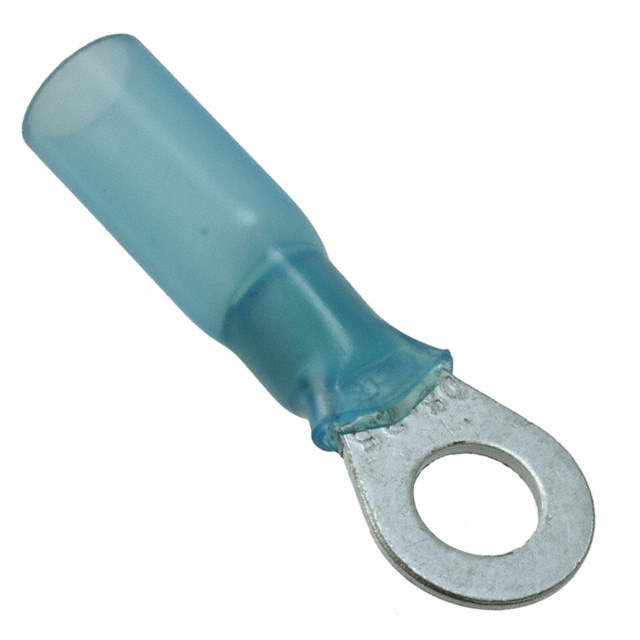

CONN RING CIRC 14-16AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
084289-000
ActiveTE Connectivity Aerospace, Defense and Marine
CONN RING CIRC 14-16AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 084289-000 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Insulation | Insulated with Heat Shrink |
| Length - Overall [x] | 33.02 mm |
| Length - Overall [x] | 1.3 in |
| Material - Insulation | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges [x] | 0.394 in |
| Width - Outer Edges [x] | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.78 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.47 | |||
Description
General part information
0842 Series
Ring Terminal Connector Circular 14-16 AWG Crimp
Documents
Technical documentation and resources
