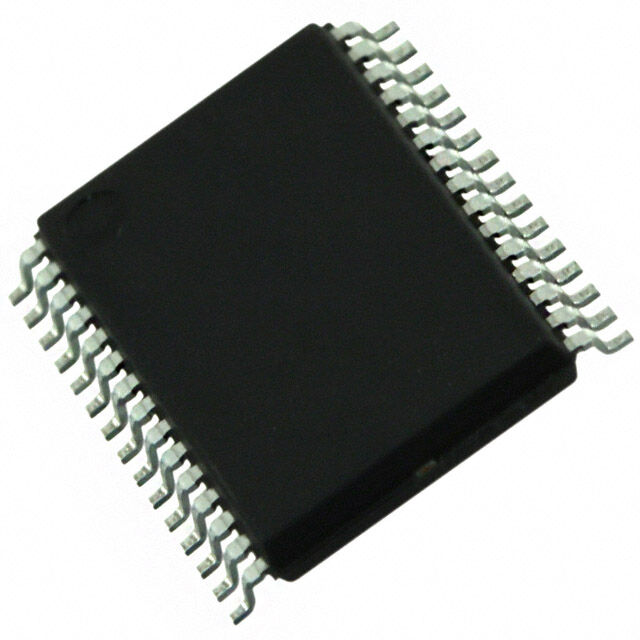

UPD78F1805AMCA-CAB-E2-G
ObsoleteRenesas Electronics Corporation
IC MCU 16BIT 32KB FLASH 30LSSOP
Deep-Dive with AI
Search across all available documentation for this part.
UPD78F1805AMCA-CAB-E2-G
ObsoleteRenesas Electronics Corporation
IC MCU 16BIT 32KB FLASH 30LSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UPD78F1805AMCA-CAB-E2-G |
|---|---|
| Connectivity | CSI, I2C, UART/USART |
| Core Processor | 78 K, 0 R |
| Core Size | 16-Bit |
| Data Converters [custom] | 8 |
| Data Converters [custom] | 10 |
| Mounting Type | Surface Mount |
| Number of I/O | 21 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 30-LSSOP |
| Package / Case | 0.24 in |
| Package / Case | 6.1 mm |
| Peripherals | WDT, DMA, LVD, PWM |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Speed | 20 MHz |
| Supplier Device Package | 30-LSSOP |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UPD78F1805 Series
78K/0R 78K0R/Fx3 Microcontroller IC 16-Bit 20MHz 32KB (32K x 8) FLASH 30-LSSOP
Documents
Technical documentation and resources
No documents available
