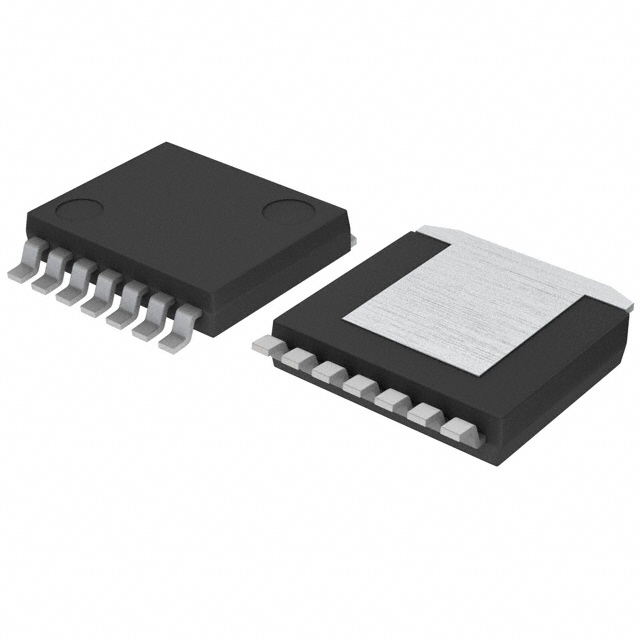

BD3021HFP-TR
ActiveRohm Semiconductor
500MA 5V OUTPUT LDO REGULATOR WI
Deep-Dive with AI
Search across all available documentation for this part.
BD3021HFP-TR
ActiveRohm Semiconductor
500MA 5V OUTPUT LDO REGULATOR WI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BD3021HFP-TR |
|---|---|
| Control Features | Reset, Watchdog |
| Current - Output | 500 mA |
| Current - Quiescent (Iq) | 130 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | HRP-7 |
| Protection Features | Over Current, Over Temperature |
| PSRR | 55 dB |
| Supplier Device Package | HRP7 |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Output (Min/Fixed) | 5 V |
| Voltage Dropout (Max) [Max] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.19 | |
| 10 | $ 4.18 | |||
| 25 | $ 3.66 | |||
| 100 | $ 3.07 | |||
| 250 | $ 2.79 | |||
| 500 | $ 2.62 | |||
| 1000 | $ 2.47 | |||
| Digi-Reel® | 1 | $ 6.19 | ||
| 10 | $ 4.18 | |||
| 25 | $ 3.66 | |||
| 100 | $ 3.07 | |||
| 250 | $ 2.79 | |||
| 500 | $ 2.62 | |||
| 1000 | $ 2.47 | |||
| Tape & Reel (TR) | 2000 | $ 1.99 | ||
| 4000 | $ 1.91 | |||
Description
General part information
BD3021 Series
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA HRP7
Documents
Technical documentation and resources
No documents available
