Q-0701K000R012i

Active

Amphenol Custom Cable

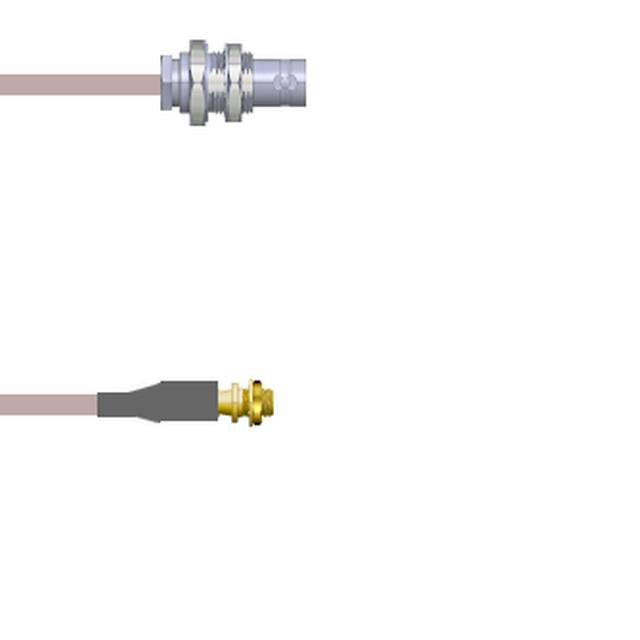

CBL ASSY BNC-MMCX JACK-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0701K000R012i

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0701K000R012i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0701K0 Series

Part	Features	2nd Connector Mounting Feature	Frequency - Max [Max]	Style	1st Connector	1st Contact Gender	Overall Impedance	2nd Contact Gender	2nd Connector Mounting Type	Length	Length	Length	Cable Type	1st Connector Mounting Type	1st Connector Mounting Feature	2nd Connector	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-0701K000R060i	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount	5 ft	1.5 m	5 '	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper
Amphenol Custom Cable Q-0701K000R012i	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount		304.8 mm	12 "	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper
Amphenol Custom Cable Q-0701K000R003M	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount	9.8 '	3 m	118.1 in	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper
Amphenol Custom Cable Q-0701K000R018i	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount				RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0701K000R009i	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount		228.6 mm	9 "	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper
Amphenol Custom Cable Q-0701K000R001M	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount	3.3 ft	1 m	39.4 in	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper
Amphenol Custom Cable Q-0701K000R024i	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount		609.6 mm	24 "	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper
Amphenol Custom Cable Q-0701K000R.75M	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount		750 mm	29.53 "	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper
Amphenol Custom Cable Q-0701K000R036i	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount		91.44 cm	36 in	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper
Amphenol Custom Cable Q-0701K000R084i	Shielded	Bulkhead - Front Side Nut	2 GHz	BNC to MMCX	BNC Jack	Female	50 Ohms	Female	Panel Mount	7 ft	2.1 m	84 in	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	MMCX Jack	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 211.06
		25	$ 206.99
		50	$ 202.92
		100	$ 198.85
		250	$ 194.78

Description

General part information

Q-0701K0 Series

Cable Assembly Coaxial BNC to MMCX RG-316 DB 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
