SP7650ER-L/TR
ActiveMaxLinear, Inc.
IC REG BUCK ADJ 3A 26DFN
Deep-Dive with AI
Search across all available documentation for this part.
SP7650ER-L/TR
ActiveMaxLinear, Inc.
IC REG BUCK ADJ 3A 26DFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SP7650ER-L/TR |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching | 300 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

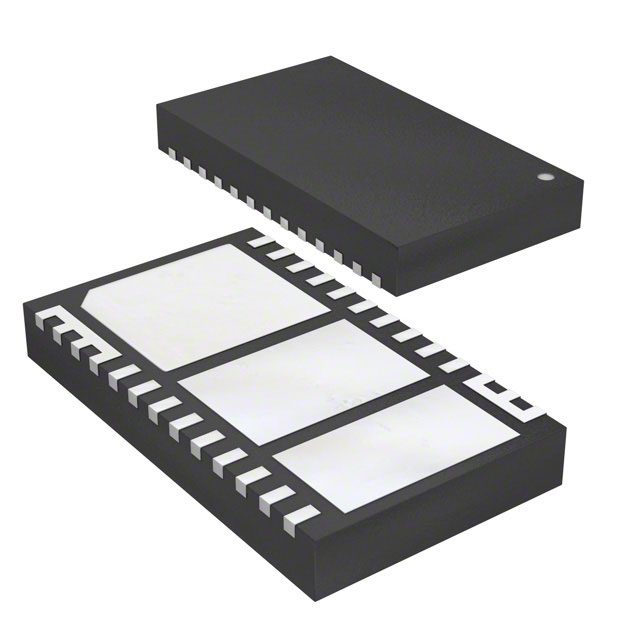

| Package / Case | 26-PowerVFDFN |
| Supplier Device Package | 26-DFN (7x4) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 28 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Max) [Max] | 27 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.74 | |
| 10 | $ 4.25 | |||
| 25 | $ 4.02 | |||
| Digi-Reel® | 1 | $ 4.74 | ||
| 10 | $ 4.25 | |||
| 25 | $ 4.02 | |||
| Tape & Reel (TR) | 3000 | $ 2.38 | ||
Description
General part information
SP7650 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 26-PowerVFDFN
Documents
Technical documentation and resources
No documents available
