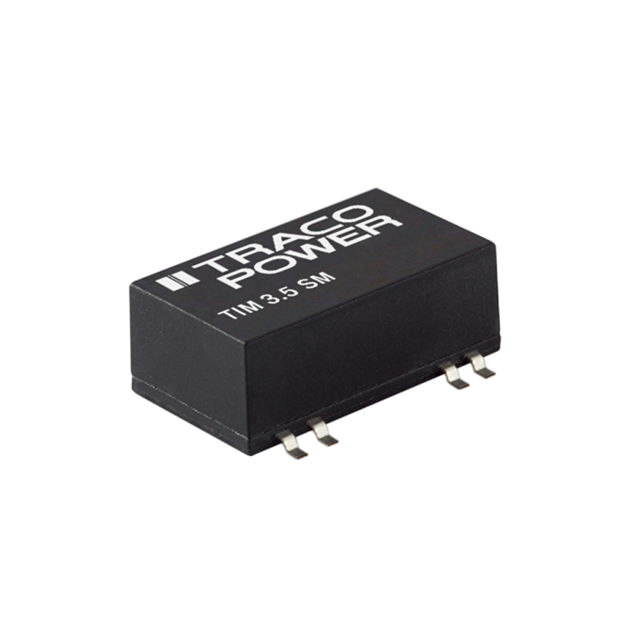

TIM 3.5-2411SM

Active

Traco Power

DC DC CONVERTER 5V 3.5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTIM 35SM Certs Datasheet

TIM 3.5-2411SM

Active

Traco Power

DC DC CONVERTER 5V 3.5W

Deep-Dive with AI

DocumentsTIM 35SM Certs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TIM 3.5-2411SM

Applications	Medical
Current - Output (Max) [Max]	700 mA
Efficiency	79 %
Features	Remote On/Off, OVP, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	7 Leads
Package / Case	16-SMD Module
Power (Watts)	3.5 W
Size / Dimension [x]	0.96 in
Size / Dimension [x]	24.3 mm
Size / Dimension [y]	0.57 in
Size / Dimension [y]	14.4 mm
Size / Dimension [z]	10.5 mm
Size / Dimension [z]	0.41 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	5000 V
Voltage - Output 1	5 V

TIM 3.5 Series

Part	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Power (Watts)	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Package / Case	Package / Case	Voltage - Input (Max) [Max]	Features	Voltage - Output 1	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Applications	Current - Output (Max)	Current - Output (Max)
Traco Power TIM 3.5-0922	4.5 V	5000 V	Isolated Module	Through Hole	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	81 %	3.5 W	2	-40 °C	90 °C	-12 V	7 Leads	16-DIP Module	12 V	OVP Remote On/Off SCP	12 V	146 mA	146 mA	Medical
Traco Power TIM 3.5-1212SM	9 V	5000 V	Isolated Module	Surface Mount	0.96 in	0.57 in	10.5 mm	0.41 "	14.4 mm	24.3 mm		3.5 W	1	-40 °C	90 °C		7 Leads	16-SMD Module	18 V	OVP Remote On/Off SCP	12 V		292 mA	Medical
Traco Power TIM 3.5-0915	4.5 V	5000 V	Isolated Module	Through Hole	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	81 %	3.5 W	1	-40 °C	90 °C		7 Leads	16-DIP Module	12 V	OVP Remote On/Off SCP	24 V		146 mA	Medical
Traco Power TIM 3.5-2411SM	18 V	5000 V	Isolated Module	Surface Mount	0.96 in	0.57 in	10.5 mm	0.41 "	14.4 mm	24.3 mm	79 %	3.5 W	1	-40 °C	90 °C		7 Leads	16-SMD Module	36 V	OVP Remote On/Off SCP	5 V		700 mA	Medical
Traco Power TIM 3.5-0919	4.5 V	5000 V	Isolated Module	Through Hole	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	78 %	3.5 W	1	-40 °C	90 °C		7 Leads	16-DIP Module	12 V	OVP Remote On/Off SCP	9 V		389 mA	Medical
Traco Power TIM 3.5-0911SM	4.5 V	5000 V	Isolated Module	Surface Mount	0.96 in	0.57 in	10.5 mm	0.41 "	14.4 mm	24.3 mm	77 %	3.5 W	1	-40 °C	90 °C		7 Leads	16-SMD Module	12 V	OVP Remote On/Off SCP	5 V		700 mA	Medical
Traco Power TIM 3.5-0923SM	4.5 V	5000 V	Isolated Module	Surface Mount	0.96 in	0.57 in	10.5 mm	0.41 "	14.4 mm	24.3 mm	81 %	3.5 W	2	-40 °C	90 °C	-15 V	7 Leads	16-SMD Module	12 V	OVP Remote On/Off SCP	15 V			Medical	117 mA	117 mA
Traco Power TIM 3.5-2412	18 V	5000 V	Isolated Module	Through Hole	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm		3.5 W	1	-40 °C	90 °C		7 Leads	16-DIP Module	36 V	OVP Remote On/Off SCP	12 V		292 mA	Medical
Traco Power TIM 3.5-1223SM	9 V	5000 V	Isolated Module	Surface Mount	0.96 in	0.57 in	10.5 mm	0.41 "	14.4 mm	24.3 mm		3.5 W	2	-40 °C	90 °C	-15 V	7 Leads	16-SMD Module	18 V	OVP Remote On/Off SCP	15 V			Medical	117 mA	117 mA
Traco Power TIM 3.5-1213SM	9 V	5000 V	Isolated Module	Surface Mount	0.96 in	0.57 in	10.5 mm	0.41 "	14.4 mm	24.3 mm		3.5 W	1	-40 °C	90 °C		7 Leads	16-SMD Module	18 V	OVP Remote On/Off SCP	15 V			Medical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 40.11
		10	$ 36.87
		25	$ 35.65
		50	$ 34.76
		100	$ 33.88
		250	$ 32.77
		500	$ 29.31
