0026615100

Active

Molex

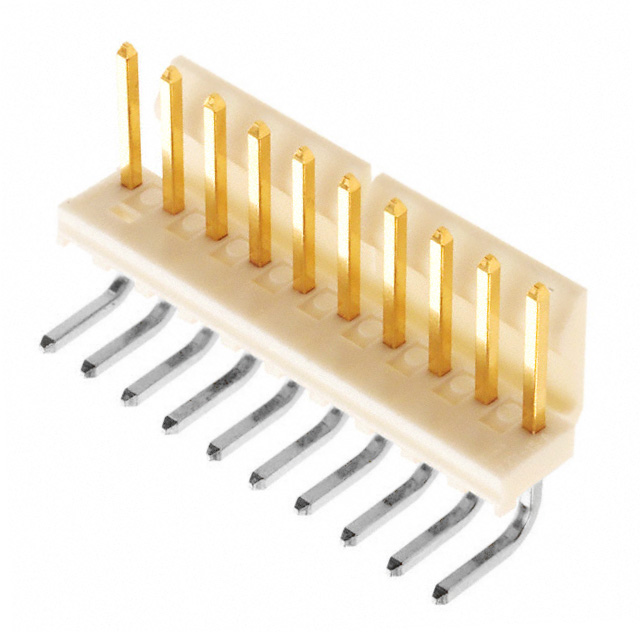

CONN HEADER R/A 10POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0026615100

Active

Molex

CONN HEADER R/A 10POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0026615100

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	11.43 mm
Contact Length - Mating	0.45 in
Contact Length - Post	0.156 in
Contact Length - Post	3.96 mm
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	10 mm
Insulation Height	0.394 "
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

002661 Series

Part	Mounting Type	Contact Finish - Post	Shrouding	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Type	Termination	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Connector Type	Style	Insulation Height	Insulation Height	Fastening Type	Insulation Material	Insulation Color	Contact Length - Post	Contact Length - Post
Molex 0026612090	Through Hole	Tin	Unshrouded	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square	3.56 mm	0.14 in	All	9	0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	11.43 mm	0.45 in	UL94 V-0	0.72 "	18.29 mm	Header	Board to Board Cable	0.13 in	3.3 mm	Push-Pull	Polyester Glass Filled	Natural
Molex 0026613060	Through Hole Right Angle	Tin	Unshrouded	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square	3.56 mm	0.14 in	All	6	0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	14.86 mm	0.585 in	UL94 V-0			Header	Board to Board Cable	0.13 in	3.3 mm	Push-Pull	Polyester Glass Filled	Natural
Molex 0026612110	Through Hole	Tin	Unshrouded	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square	3.56 mm	0.14 in	All	11	0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	11.43 mm	0.45 in	UL94 V-0	0.72 "	18.29 mm	Header	Board to Board Cable	0.13 in	3.3 mm	Push-Pull	Polyester Glass Filled	Natural
Molex 0026613170	Through Hole Right Angle	Tin	Unshrouded	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square	3.56 mm	0.14 in	All		0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	14.86 mm	0.585 in	UL94 V-0			Header	Board to Board Cable	0.13 in	3.3 mm	Push-Pull	Polyester Glass Filled	Natural
Molex 0026614100	Through Hole	Tin	Shrouded - 1 Wall	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square	3.56 mm	0.14 in	All	10	0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	11.43 mm	0.45 in	UL94 V-0	0.72 "	18.29 mm	Header	Board to Board Cable	0.446 in	11.33 mm	Friction Lock	Polyester Glass Filled	Natural
Molex 0026615100	Through Hole Right Angle	Tin	Shrouded - 1 Wall	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square			All	10	0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	11.43 mm	0.45 in	UL94 V-0			Header	Board to Board Cable	0.394 "	10 mm	Friction Lock	Polyester Glass Filled	Natural	0.156 in	3.96 mm
Molex 0026613100	Through Hole Right Angle	Tin	Unshrouded	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square	3.56 mm	0.14 in	All	10	0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	14.86 mm	0.585 in	UL94 V-0			Header	Board to Board Cable	0.13 in	3.3 mm	Push-Pull	Polyester Glass Filled	Natural
Molex 0026613140	Through Hole Right Angle	Tin	Unshrouded	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square	3.56 mm	0.14 in	All	14	0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	14.86 mm	0.585 in	UL94 V-0			Header	Board to Board Cable	0.13 in	3.3 mm	Push-Pull	Polyester Glass Filled	Natural
Molex 0026612050	Through Hole	Tin	Unshrouded	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square	3.56 mm	0.14 in	All		0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	11.43 mm	0.45 in	UL94 V-0	0.72 "	18.29 mm	Header	Board to Board Cable	0.13 in	3.3 mm	Push-Pull	Polyester Glass Filled	Natural
Molex 0026614140	Through Hole	Tin	Shrouded - 1 Wall	Automotive General Purpose Industrial Medical Telecommunications	0.51 µm	20 µin	Square	3.56 mm	0.14 in	All	14	0.156 in	3.96 mm	Gold	2.54 µm	100 µin	1	Male Pin	Solder	11.43 mm	0.45 in	UL94 V-0	0.72 "	18.29 mm	Header	Board to Board Cable	0.446 in	11.33 mm	Friction Lock	Polyester Glass Filled	Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.08
		10	$ 7.90
		125	$ 6.52
		1000	$ 5.41

Description

General part information

002661 Series

Connector Header Through Hole, Right Angle 10 position 0.156" (3.96mm)
