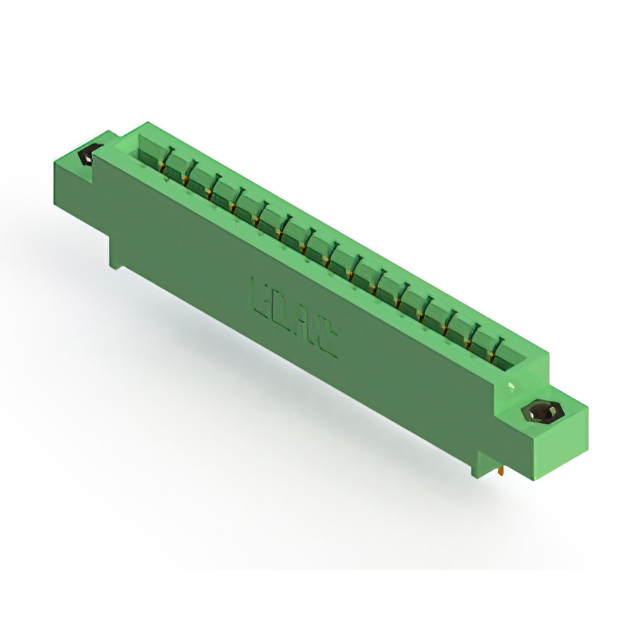

333-015-520-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-015-520-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-015-520-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
333-015 Series
| Part | Contact Type | Read Out | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Gender | Number of Positions | Color | Pitch [x] | Pitch [x] | Number of Rows | Contact Finish | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Material - Insulation | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Single | Through Hole Right Angle | 10 Áin | 0.25 Ám | Solder | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic | ||
EDAC Inc. | Cantilever | Single | Through Hole | 10 Áin | 0.25 Ám | Solder | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic | ||
EDAC Inc. | Cantilever | Single | Through Hole | 10 Áin | 0.25 Ám | Wire Wrap | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic | ||||
EDAC Inc. | Cantilever | Single | Through Hole Right Angle | 10 Áin | 0.25 Ám | Wire Wrap | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | Side Mount Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic | 3.25 mm | 0.128 in | ||
EDAC Inc. | Cantilever | Single | Through Hole | 10 Áin | 0.25 Ám | Solder | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic | ||
EDAC Inc. | Cantilever | Single | Through Hole | 10 Áin | 0.25 Ám | Solder | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic | ||||
EDAC Inc. | Cantilever | Single | Through Hole | 10 Áin | 0.25 Ám | Wire Wrap | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic | ||
EDAC Inc. | Cantilever | Single | Through Hole | 10 Áin | 0.25 Ám | Wire Wrap | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic | ||||
EDAC Inc. | Cantilever | Single | Through Hole | 10 Áin | 0.25 Ám | Solder | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic | ||||
EDAC Inc. | Cantilever | Single | Through Hole | 10 Áin | 0.25 Ám | Solder | Female | 15 | Green | 0.156 in | 3.96 mm | 1 | Gold | 1 | -40 °C | 105 ░C | Copper Alloy | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.62 | |
Description
General part information
333-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
