OSTNR141200

Active

On Shore Technology Inc.

3.5MM 2 PC TERM BLOCK HEADER VER

Search across all available documentation for this part.

Active

On Shore Technology Inc.

3.5MM 2 PC TERM BLOCK HEADER VER

Technical Specifications

Parameters and characteristics for this part

Specification	OSTNR141200

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - UL	8 A
Features	Mating Flange
Header Orientation	Vertical
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	11.6 mm
Insulation Height	0.457 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	14
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	7
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Voltage - UL	Termination Style	Pitch [x]	Pitch [x]	Features	Number of Positions	Color	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Tail Length	Contact Tail Length	Number of Levels	Housing Material	Current - UL	Contact Material	Header Orientation	Contact Mating Finish	Type	Positions Per Level	Mounting Type
On Shore Technology Inc. OSTNR141200	300 V	Solder	3.5 mm	0.138 in	Mating Flange	14	Black	11.6 mm	0.457 in	UL94 V-0	-40 °C	115 °C	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	8 A	Copper	Vertical	Tin	Header Male Pins Shrouded (4 Side)	7	Through Hole
On Shore Technology Inc. OSTNR141201	150 V	Solder	3.5 mm	0.138 in	Mating Flange	14	Black	10.8 mm	0.425 in	UL94 V-0	-40 °C	115 °C	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	8 A	Copper	90° Right Angle	Tin	Header Male Pins Shrouded (4 Side)	7	Through Hole
On Shore Technology Inc. OSTNR141100	300 V	Solder	3.5 mm	0.138 in		14	Black	11.6 mm	0.457 in	UL94 V-0	-40 °C	115 °C	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	8 A	Copper	Vertical	Tin	Header Male Pins Shrouded (4 Side)	7	Through Hole
On Shore Technology Inc. OSTNR141101	150 V	Solder	3.5 mm	0.138 in		14	Black	10.8 mm	0.425 in	UL94 V-0	-40 °C	115 °C	0.079 in	2 mm	2	Liquid Crystal Polymer (LCP)	8 A	Copper	90° Right Angle	Tin	Header Male Pins Shrouded (4 Side)	7	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

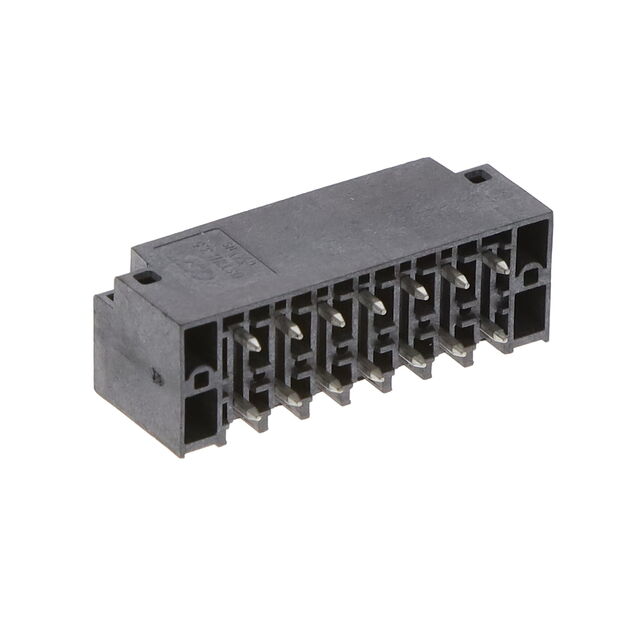

14 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
