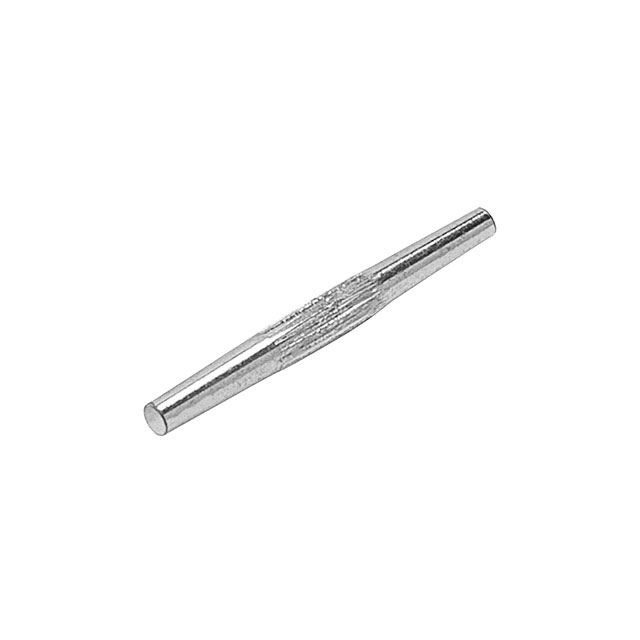

H2083-01

Active

Harwin Inc.

CONN PC PIN TIN

Search across all available documentation for this part.

Active

Harwin Inc.

CONN PC PIN TIN

Technical Specifications

Parameters and characteristics for this part

Specification	H2083-01

Board Thickness	3.2 mm
Board Thickness	0.126 in
Contact Finish	Tin
Contact Material	Brass
Insulation	Non-Insulated
Length - Overall [x]	15.88 mm
Length - Overall [x]	0.625 in
Mounting Hole Diameter [Max] [diameter]	1.6 mm
Mounting Hole Diameter [Max] [diameter]	0.063 "
Mounting Hole Diameter [Min] [diameter]	0.061 "
Mounting Hole Diameter [Min] [diameter]	1.55 mm
Mounting Type	Through Hole
Terminal Style	Double End
Terminal Type	PC Pin
Termination	Staking Flare

Part	Length - Overall [x]	Length - Overall [x]	Terminal Style	Mounting Type	Contact Finish	Terminal Type	Insulation	Board Thickness	Board Thickness	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Contact Material	Termination
Harwin Inc. H2083-01	15.88 mm	0.625 in	Double End	Through Hole	Tin	PC Pin	Non-Insulated	3.2 mm	0.126 in	1.6 mm	0.063 "	0.061 "	1.55 mm	Brass	Staking Flare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 0.28

General part information

PC Pin Terminal Connector Through Hole Tin
