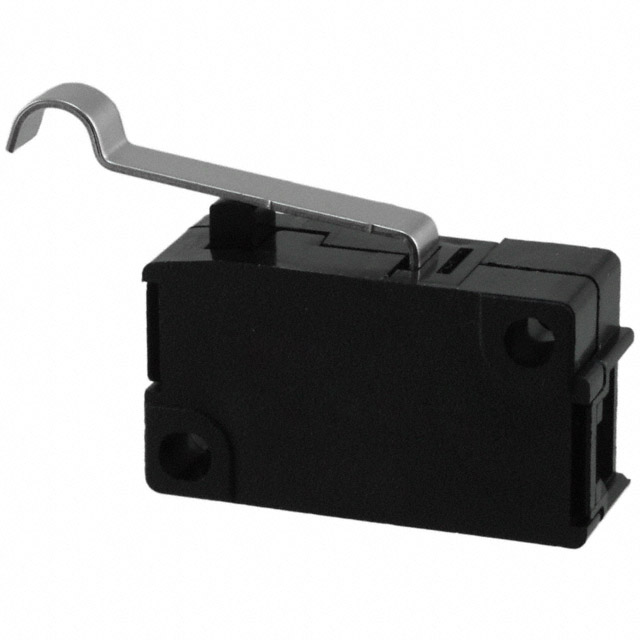

VX10-B1
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT DGTL OC 10MA 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VX10-B1 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | Open Collector, Digital |
| Current Rating (Amps) | 10 mA |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Mounting Type | Chassis Mount |
| Operating Force | 5 gf |
| Operating Position | 0.67 in |
| Operating Position | 17 mm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.075 in |
| Overtravel | 1.9 mm |
| Switch Function | Off-Mom |
| Termination Style | Connector |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VX10-B Series
Switch Digital, Open Collector Chassis Mount
