IS31AP2121-LQLS1

Obsolete

Lumissil Microsystems

IC AMP CLASS D MONO 20W 48LQFP

Search across all available documentation for this part.

Obsolete

Lumissil Microsystems

IC AMP CLASS D MONO 20W 48LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	IS31AP2121-LQLS1

Features	Short-Circuit, Thermal Protection, Depop
Max Output Power x Channels @ Load	20 W, 8 Ohm, 2
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Type	1-Channel (Mono)

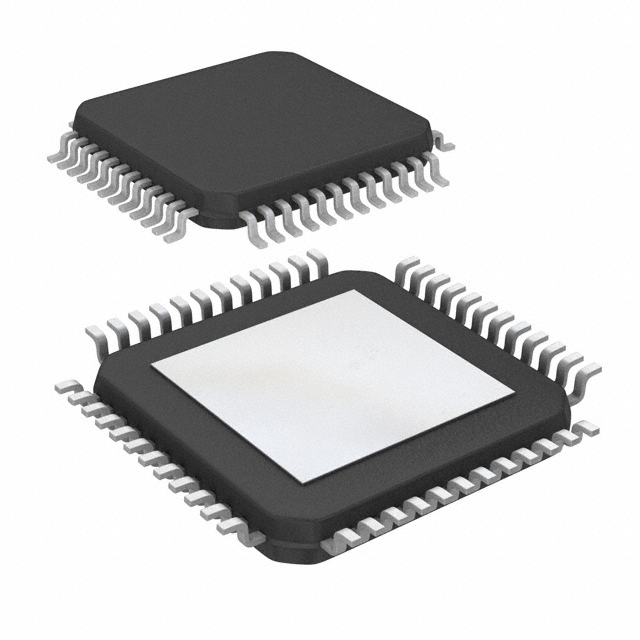

Package / Case	48-LQFP Exposed Pad
Supplier Device Package	48-eLQFP (7x7)
Type	Class D
Voltage - Supply [Max]	26 V
Voltage - Supply [Min]	10 VDC

Part	Max Output Power x Channels @ Load	Type	Mounting Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package
Lumissil Microsystems IS31AP2121-LQLS1	2 8 Ohm 20 W	Class D	Surface Mount	48-LQFP Exposed Pad	10 VDC	26 V	Depop Short-Circuit Thermal Protection	70 °C	0 °C	1-Channel (Mono)	48-eLQFP (7x7)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class D 48-eLQFP (7x7)
