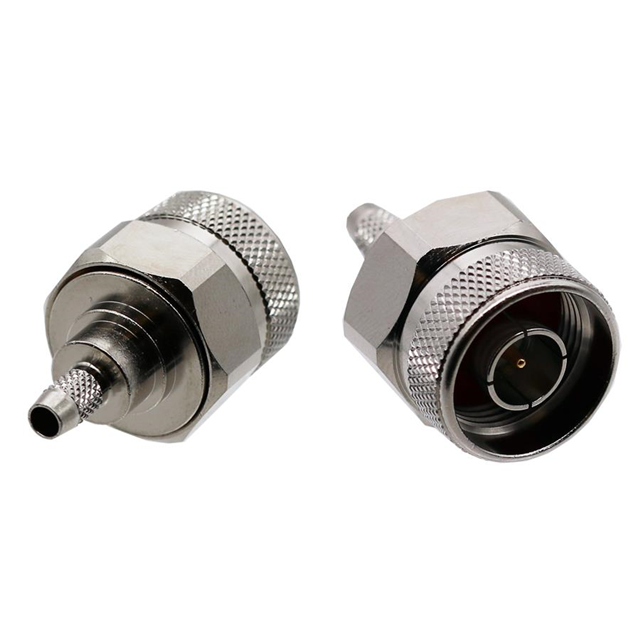

138-0407-021

Active

Cinch Connectivity Solutions Johnson

N STRAIGHT CRIMP PLUG, RG58, 50

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

N STRAIGHT CRIMP PLUG, RG58, 50

Technical Specifications

Parameters and characteristics for this part

Specification	138-0407-021

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Housing Color	Contact Termination	Frequency - Max [Max]	Mating Cycles	Center Contact Plating	Body Material	Insertion Loss	Voltage Rating	Connector Type	Dielectric Material	Impedance	Shield Termination	Body Finish	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Center Contact Material	Cable Group	Connector Style
Cinch Connectivity Solutions Johnson 138-0407-021	Silver	Crimp	4 GHz	500	Gold	Brass	0.1 dB	500 V	Male Pin Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Crimp	Nickel	1	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	RG-58	N Type

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
