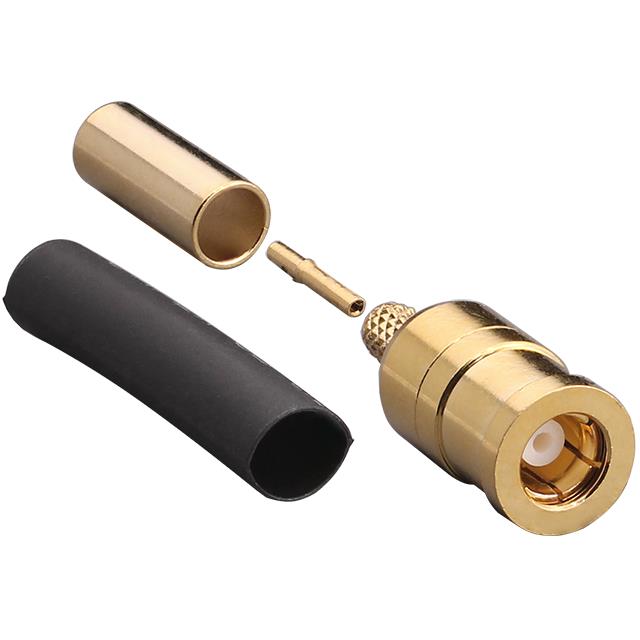

CONSMB007-G

Active

TE Connectivity Linx

CONN SMB PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN SMB PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	CONSMB007-G

Body Finish	Gold
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	750 VDC

Part	Connector Type	Shield Termination	Contact Termination	Impedance	Body Finish	Cable Group	Frequency - Max [Max]	Number of Ports	Body Material	Center Contact Plating	Fastening Type	Connector Style	Dielectric Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Center Contact Material	Mating Cycles	Housing Color
TE Connectivity Linx CONSMB007-G	Female Socket Plug	Crimp	Crimp	50 Ohms	Gold	188 188A 316 LMR-100 M17/119-RG174 RG-174	12 GHz	1	Brass	Gold	Snap-On	SMB	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	-65 ░C	165 °C	750 VDC	Beryllium Copper	500	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
