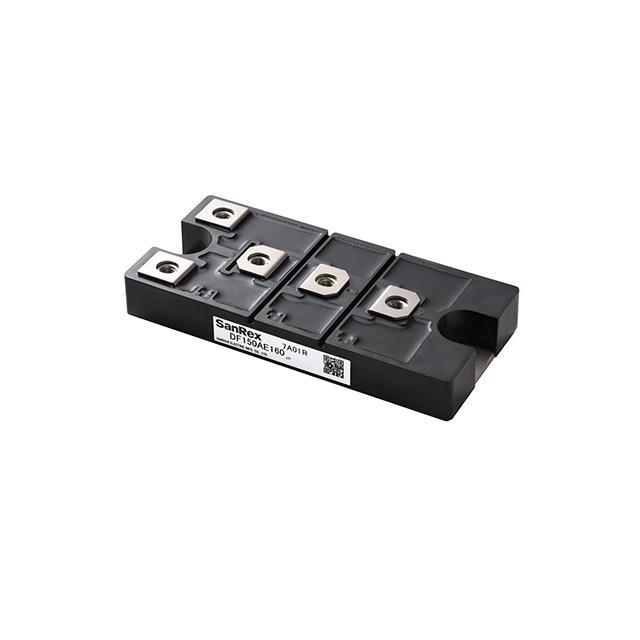

DF150AE160

Active

SanRex Corporation

DIODE MODULE 1600V 150A

Search across all available documentation for this part.

Active

SanRex Corporation

DIODE MODULE 1600V 150A

Technical Specifications

Parameters and characteristics for this part

Specification	DF150AE160

Current - Average Rectified (Io)	150 A
Current - Reverse Leakage @ Vr	15 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.31 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Voltage - Peak Reverse (Max) [Max]	Package / Case	Voltage - Peak Reverse (Max)
SanRex Corporation DF150AE80	1.31 V	Chassis Mount	150 A	15 mA	Standard	150 °C	-40 °C	Three Phase	800 V	Module
SanRex Corporation DF150AE160	1.31 V	Chassis Mount	150 A	15 mA	Standard	150 °C	-40 °C	Three Phase		Module	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount
