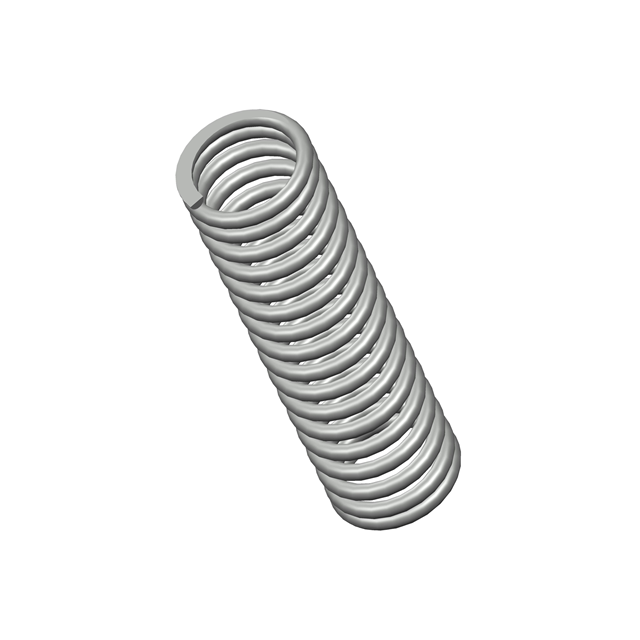

A16-68CS
ActiveCentury Spring Corp
COMP O= .420,L= 1.50,W= .051
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A16-68CS
ActiveCentury Spring Corp
COMP O= .420,L= 1.50,W= .051
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A16-68CS |
|---|---|
| Diameter - Inside [diameter] | 8.08 mm |
| Diameter - Inside [diameter] | 0.318 in |
| Diameter - Outside [diameter] | 10.67 mm |
| Diameter - Outside [diameter] | 0.42 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.5 in |
| Free Length | 38.1 mm |
| Material | Music Wire |
| Rate | 13 lbs/in |
| Type | Compression |
| Wire Diameter | 1.3 mm |
| Wire Diameter | 0.051 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.43 | |
| 50 | $ 1.36 | |||
| 150 | $ 1.29 | |||
| 300 | $ 1.21 | |||
| 500 | $ 1.07 | |||
Description
General part information
A16 Series
COMP O= .420,L= 1.50,W= .051
