FR01KC10H-06XL-S

Active

NKK Switches

SW ROTARY DIP BCD COMP 0.1A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FR01KC10H-06XL-S

Active

NKK Switches

SW ROTARY DIP BCD COMP 0.1A 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FR01KC10H-06XL-S

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD Complement
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board [z]	10 mm
Height Above Board [z]	0.394 in
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	False

FR01KC10 Series

Part	Contact Material	Mounting Type	Contact Finish	Current Rating (Amps)	Body Material	Pitch [x]	Pitch	Pitch [x]	Circuit	Electrical Life	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board [z]	Height Above Board [z]	Length	Length	Actuator Type	Mechanical Life	Number of Positions	Termination Style	Actuator Level
NKK Switches FR01KC10H-06XL	Copper Alloy	Through Hole Right Angle	Gold	100 mA	Polyamide (PA) Nylon Glass Filled	0.1 in	Full	2.54 mm	BCD Complement	10000 Cycles	5 V	-25 °C	85 °C	10 mm	0.394 in	10 mm	0.394 in	Rotary with Shaft	10000 Steps	10	PC Pin	Raised
NKK Switches FR01KC10P-W-S	Copper Alloy	Through Hole	Gold	100 mA	Polyamide (PA) Nylon Glass Filled	0.1 in	Full	2.54 mm	BCD Complement	10000 Cycles	5 V	-25 °C	85 °C	10.82 mm	0.426 in	10 mm	0.394 in	Rotary with Shaft	10000 Steps	10	PC Pin	Raised
NKK Switches FR01KC10H-06XL-S	Copper Alloy	Through Hole Right Angle	Gold	100 mA	Polyamide (PA) Nylon Glass Filled	0.1 in	Full	2.54 mm	BCD Complement	10000 Cycles	5 V	-25 °C	85 °C	10 mm	0.394 in	10 mm	0.394 in	Rotary with Shaft	10000 Steps	10	PC Pin	Raised
NKK Switches FR01KC10H-S	Copper Alloy	Through Hole Right Angle	Gold	100 mA	Polyamide (PA) Nylon Glass Filled	0.1 in	Full	2.54 mm	BCD Complement	10000 Cycles	5 V	-25 °C	85 °C	10 mm	0.394 in	10 mm	0.394 in	Rotary with Shaft	10000 Steps	10	PC Pin	Raised
NKK Switches FR01KC10P-W	Copper Alloy	Through Hole	Gold	100 mA	Polyamide (PA) Nylon Glass Filled	0.1 in	Full	2.54 mm	BCD Complement	10000 Cycles	5 V	-25 °C	85 °C	10.82 mm	0.426 in	10 mm	0.394 in	Rotary with Shaft	10000 Steps	10	PC Pin	Raised
NKK Switches FR01SR10P-S	Copper Alloy	Through Hole	Gold	100 mA	Polyamide (PA) Nylon Glass Filled	0.1 in	Full	2.54 mm	BCD	10000 Cycles	5 V	-25 °C	85 °C	7.21 mm	0.284 in	10 mm	0.394 in	Rotary with Knob	10000 Steps	10	PC Pin	Raised
NKK Switches FR01SR10P	Copper Alloy	Through Hole	Gold	100 mA	Polyamide (PA) Nylon Glass Filled	0.1 in	Full	2.54 mm	BCD	10000 Cycles	5 V	-25 °C	85 °C	7.21 mm	0.284 in	10 mm	0.394 in	Rotary with Knob	10000 Steps	10	PC Pin	Raised
NKK Switches FR01KC10P	Copper Alloy	Through Hole	Gold	100 mA	Polyamide (PA) Nylon Glass Filled	0.1 in	Full	2.54 mm	BCD Complement	10000 Cycles	5 V	-25 °C	85 °C	10.82 mm	0.426 in	10 mm	0.394 in	Rotary with Shaft	10000 Steps	10	PC Pin	Raised

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 2.89

Description

General part information

FR01KC10 Series

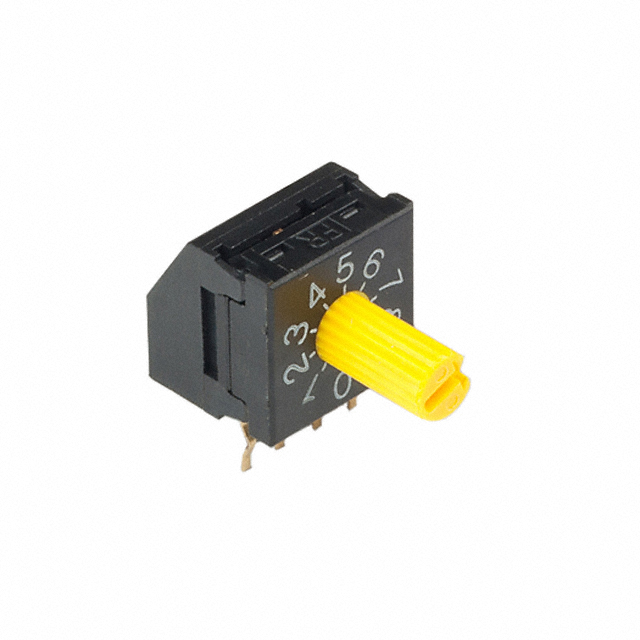

Dip Switch BCD Complement 10 Position Through Hole, Right Angle Rotary with Shaft Actuator 100mA 5VDC
