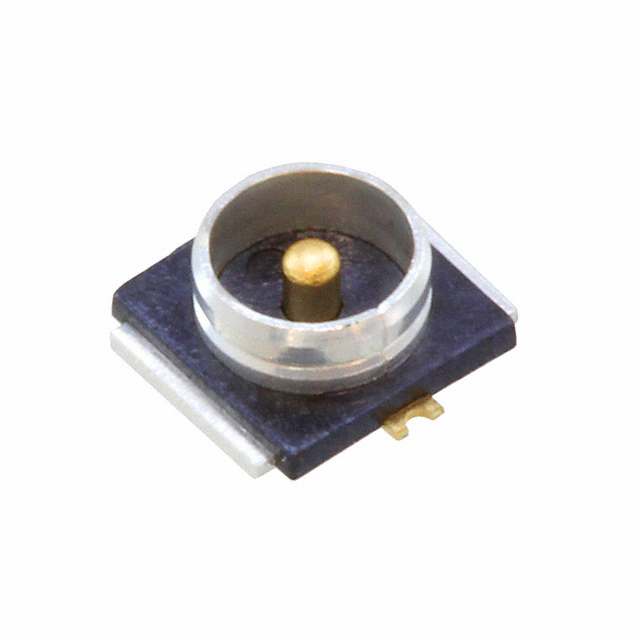

MM9329-2700RB5
ObsoleteMurata Power Solutions Inc.
CONN GSC JACK STR 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MM9329-2700RB5
ObsoleteMurata Power Solutions Inc.
CONN GSC JACK STR 50 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MM9329-2700RB5 |
|---|---|
| Body Finish | Silver |
| Body Material | Copper Alloy |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | GSC |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MM9329 Series
GSC Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
Documents
Technical documentation and resources
