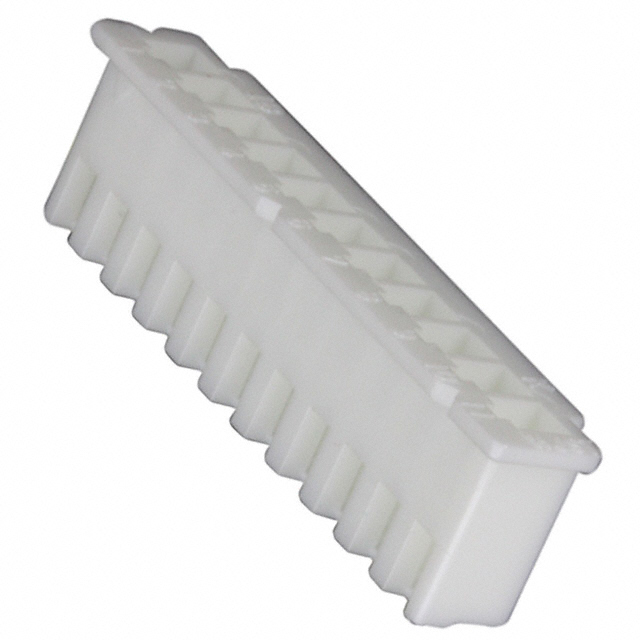

XHP-11

Active

JST Sales America Inc.

CONN RCPT HSG 11POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JST Prefix Suffix Chart

XHP-11

Active

JST Sales America Inc.

CONN RCPT HSG 11POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet JST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP-11

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	11
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

XHP Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Pitch [x]	Pitch [x]	Insulation Material	Note	Mounting Type	Color	Number of Positions	Contact Termination	Number of Rows	Number of Positions
JST Sales America Inc. XHP-10	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Natural	10	Crimp	1
JST Sales America Inc. XHP-14	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Natural	14	Crimp	1
JST Sales America Inc. XHP-16	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Natural		Crimp	1	16
JST Sales America Inc. XHP-20	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Natural	20	Crimp	1
JST Sales America Inc. XHP-2	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Natural	2	Crimp	1
JST Sales America Inc. XHP-3	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Natural		Crimp	1
JST Sales America Inc. XHP-9	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Natural	9	Crimp	1
JST Sales America Inc. XHP-3-Y	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Yellow		Crimp	1
JST Sales America Inc. XHP-6	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Natural	6	Crimp	1
JST Sales America Inc. XHP-11	-25 °C	85 °C	Receptacle	Female Socket	0.098 in	2.5 mm	Polyamide (PA6) Nylon 6	Contacts Not Included	Free Hanging (In-Line)	Natural	11	Crimp	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.25
		10	$ 0.21
		25	$ 0.19
		50	$ 0.18
		100	$ 0.16
		250	$ 0.14
		500	$ 0.14
		1000	$ 0.11
		3000	$ 0.10

Description

General part information

XHP Series

11 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

Datasheet

JST Prefix Suffix Chart

Datasheet
