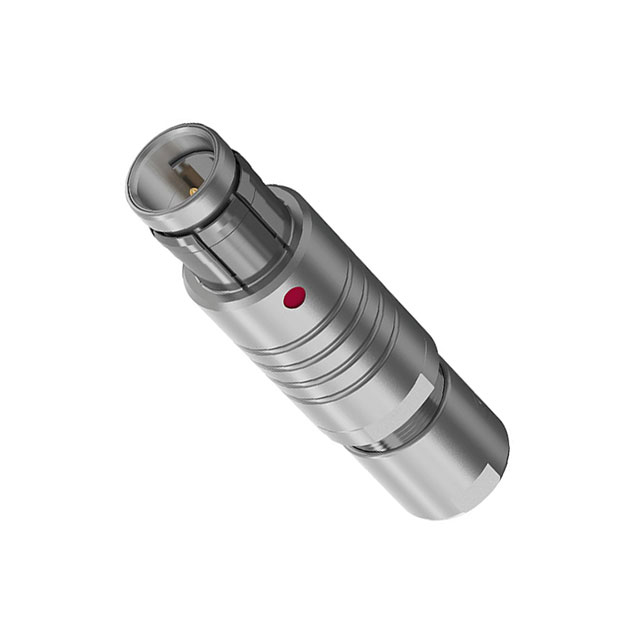

S10F1C-P07MCC0-5000

Active

ODU

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ODU MINI-SNAP F Assembly Instruction +1

S10F1C-P07MCC0-5000

Active

ODU

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet ODU MINI-SNAP F Assembly Instruction +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S10F1C-P07MCC0-5000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	0.197 in
Cable Opening [Max] [diameter]	5 mm
Cable Opening [Min] [diameter]	0.177 in
Cable Opening [Min] [diameter]	4.5 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded

S10F1C-P Series

Part	Shell Material	Connector Type	Material Flammability Rating	Fastening Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Ingress Protection	Backshell Material, Plating	Shielding	Applications	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Primary Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Orientation	Color	Shell Finish	Mounting Type	Voltage Rating	Number of Positions	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]
ODU S10F1C-P05MFG0-4500	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Shielded	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Gold	Metal	4.5 mm	0.157 in	0.177 in	4 mm	1	Silver	Chrome over Nickel	Free Hanging (In-Line)
ODU S10F1C-P04MFG0-3500	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Unshielded	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Gold	Metal					1	Silver	Chrome over Nickel	Free Hanging (In-Line)	300 VDC	4	0.138 in	3.5 mm	3 mm	0.118 in
ODU S10F1C-P04LFG0-5000	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Unshielded	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Gold	Metal					1	Silver	Chrome over Nickel	Free Hanging (In-Line)	300 VDC	4	0.197 in		4.5 mm	0.177 in	5 mm
ODU S10F1C-P09MCC0-4500	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Shielded	Industrial Medical Military Testing Equipment & Measurement	4 A	Brass	Gold	Metal	4.5 mm	0.157 in	0.177 in	4 mm	1	Silver	Chrome over Nickel	Free Hanging (In-Line)		9
ODU S10F1C-P03MJG0-5000	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Shielded	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Gold	Metal					1	Silver	Chrome over Nickel	Free Hanging (In-Line)			0.197 in		4.5 mm	0.177 in	5 mm
ODU S10F1C-P03MJG0-3000	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Unshielded	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Gold	Metal					1	Silver	Chrome over Nickel	Free Hanging (In-Line)	400 V		0.118 in		2.5 mm	0.098 in	3 mm
ODU S10F1C-P05MFG0-1500	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Unshielded	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Gold	Metal					1	Silver	Chrome over Nickel	Free Hanging (In-Line)	200 V							0.039 in 0.059 in	1 mm 1.5 mm
ODU S10F1C-P05MFG0-3500	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Unshielded	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Gold	Metal					1	Silver	Chrome over Nickel	Free Hanging (In-Line)	200 V		0.138 in	3.5 mm	3 mm	0.118 in
ODU S10F1C-P07MCC0-2500	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Unshielded	Industrial Medical Military Testing Equipment & Measurement	4 A	Brass	Gold	Metal		0.079 in	0.098 in	2 mm	1	Silver	Chrome over Nickel	Free Hanging (In-Line)	300 VDC	7								2.5 mm
ODU S10F1C-P07MCC0-5000	Brass	Male Pins Plug	UL94 V-0	Push-Pull	Backshell	-40 °C	120 °C	Polyetheretherketone (PEEK)	IP50	Brass Chrome over Nickel	Shielded	Industrial Medical Military Testing Equipment & Measurement	4 A	Brass	Gold	Metal					1	Silver	Chrome over Nickel	Free Hanging (In-Line)		7	0.197 in		4.5 mm	0.177 in	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.88
		10	$ 24.63

Description

General part information

S10F1C-P Series

7 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

ODU MINI-SNAP F Assembly Instruction

Datasheet

ODU MINI-SNAP Series F Catalog

Datasheet
