26700-109-PRO

Active

Aven Tools

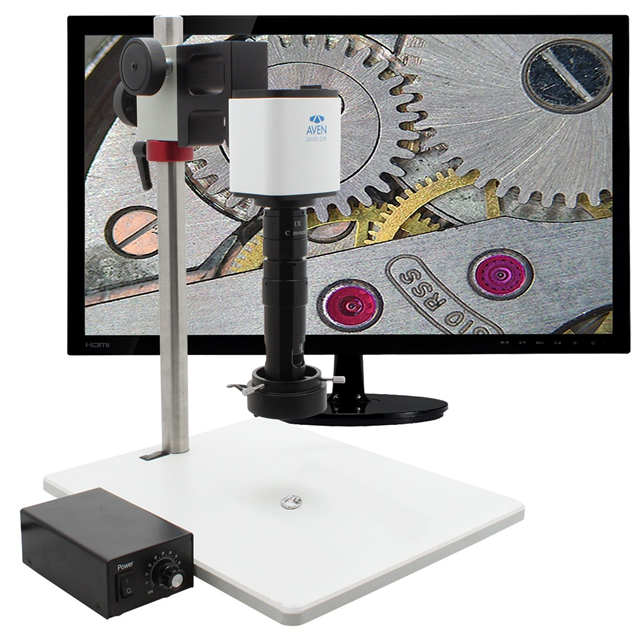

AUTO FOCUS MICRO SYSTEM PRO

Search across all available documentation for this part.

Active

Aven Tools

AUTO FOCUS MICRO SYSTEM PRO

Technical Specifications

Parameters and characteristics for this part

Specification	26700-109-PRO

Camera Type	CMOS 1/2.8"
Field of View [Max]	0.63 in
Field of View [Max]	16 mm
Field of View [Min]	1.8 mm
Field of View [Min]	0.07 in
Illumination	LED
Includes	Mount, Ring Light, Lens, Microscope, Monitor, Cable, Stand
Interface	HDMI, USB
Magnification Range [Max]	384 x
Magnification Range [Min]	28.8 x
Type	Digital, Microscope
Working Distance [x]	76.2 mm
Working Distance [x]	3 "

Part	Working Distance	Working Distance	Display Style	Display Style	Illumination	Magnification Range [Min]	Magnification Range [Max]	Type	Magnification Range	For Use With/Related Products	Accessory Type	Camera Type	Field of View [Max]	Field of View [Min]	Field of View [Max]	Field of View [Min]	Includes	Working Distance [x]	Working Distance [x]	Interface	Base Size [y]	Base Size [x]	Base Size [x]	Base Size [y]	Arm Length [x]	Arm Length [x]	Magnification Range	Working Distance [Max]	Working Distance [Min]	Working Distance [Max]	Working Distance [Min]	Field of View [Min]	Field of View [Max]
Aven Tools 26700-118	6 in	152.4 mm	HD LCD	11.6 in	LED (60)	7 x	40 x
Aven Tools 26700-140-L20X								Lens	2 x	MicroVue Digital Microscope
Aven Tools 26700-181AP										Mighty Vue Slim	Power Adapter
Aven Tools 26700-109-PRO					LED	28.8 x	384 x	Digital Microscope				CMOS 1/2.8"	0.63 in	1.8 mm	16 mm	0.07 in	Cable Lens Microscope Monitor Mount Ring Light Stand	76.2 mm	3 "	HDMI USB
Aven Tools 26700-138-4D						2 x	52 x	Lens		SharpVue® Plus SharpVue® XT
Aven Tools 26700-140-M32								Focus Mount		MicroVue Digital Microscope
Aven Tools 26700-135-TTBV2										Camera: SharpVue®	Tilt Table
Aven Tools 26700-211								Stand		Microscope: Mighty Scope Series											200 mm	7.87 in	200 mm	7.87 in	6.2 in	158 mm
Aven Tools 26700-136	9 in	228.6 mm			LED			Digital Microscope									Cables Software			HDMI USB							300x Digital 30x Optical
Aven Tools 26700-108-PRO					LED	3 x	43 x	Digital Microscope				CMOS 1/2.8"	142 mm			11 mm	Cable Lens Microscope Monitor Mount Ring Light Stand			HDMI USB								300 mm	0.79 in	11.81 in	20 mm	0.43 in	5.59 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3032.14

General part information

Microscope, Digital 28.8x ~ 384x LED (96)
