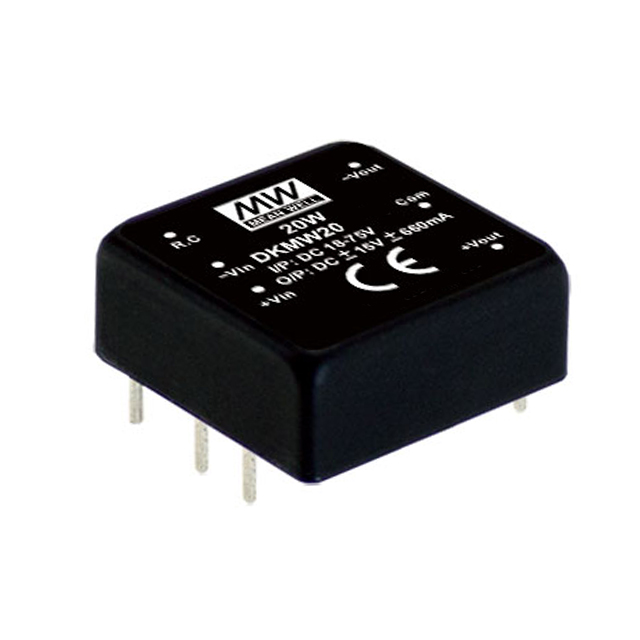

DKMW20F-15

Active

MEAN WELL USA Inc.

DC DC CONVERTER +/-15V 20W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC DC CONVERTER +/-15V 20W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max)	Current - Output (Max)	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Efficiency	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 2	Voltage - Output 1	Package / Case	Applications	Voltage - Isolation	Type	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
MEAN WELL USA Inc. DKMW20F-15	660 mA	660 mA	2	9 V	85 °C	-40 °C	Through Hole	87 %	20 W	36 V	-15 V	15 V	6-DIP Module	ITE (Commercial)	1.5 kV	Isolated Module	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
MEAN WELL USA Inc. DKMW20G-12	830 mA	830 mA	2	18 V	85 °C	-40 °C	Through Hole	87 %	20 W	75 V	-12 V	12 V	6-DIP Module	ITE (Commercial)	1.5 kV	Isolated Module	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
MEAN WELL USA Inc. DKMW20F-12	830 mA	830 mA	2	9 V	85 °C	-40 °C	Through Hole	87 %	20 W	36 V	-12 V	12 V	6-DIP Module	ITE (Commercial)	1.5 kV	Isolated Module	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 660mA, 660mA 9V - 36V Input
