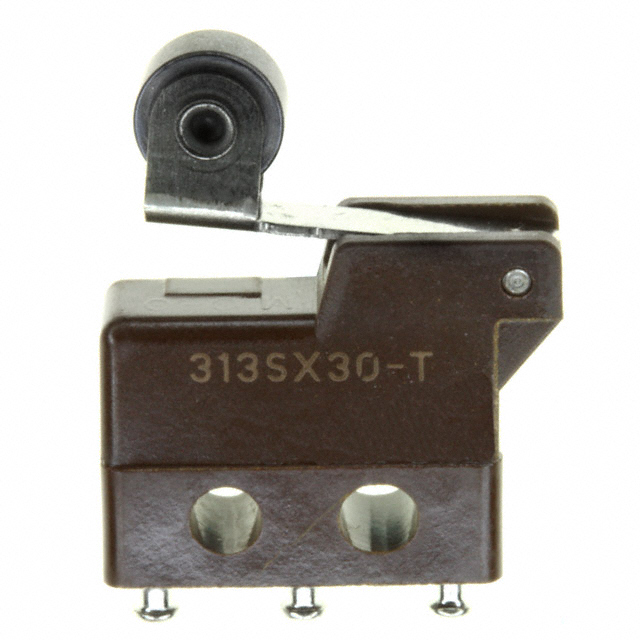

313SX30-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
313SX30-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 313SX30-T |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Differential Travel | 0.015 in |
| Differential Travel | 0.38 mm |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 68 gf |
| Operating Position | 14.15 mm |
| Operating Position | 0.557 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overtravel | 0.25 mm |
| Overtravel | 0.01 in |
| Pretravel | 0.05 in |
| Pretravel | 1.27 mm |
| Release Force | 11 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Turret |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 31.38 | |
Description
General part information
313SX30 Series
Switch SPDT Chassis Mount
