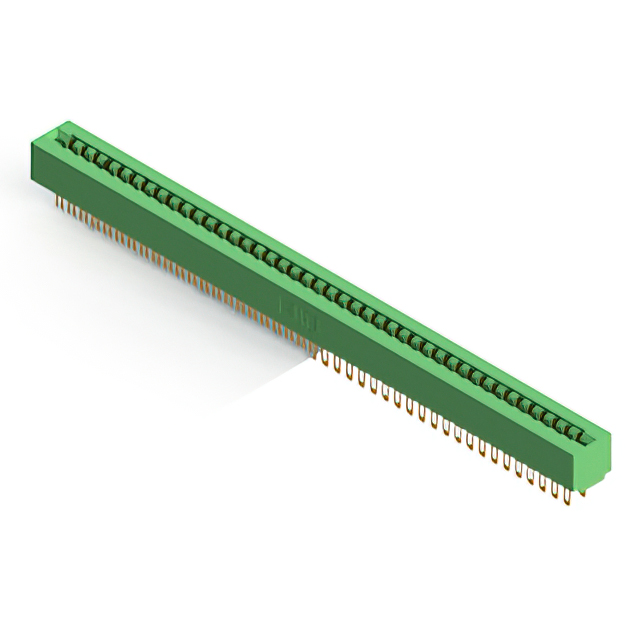

307-086-500-201

Active

EDAC Inc.

3.96MM STRAIGHT 86P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Solutions Brochure Card Edge Brochure +1

307-086-500-201

Active

EDAC Inc.

3.96MM STRAIGHT 86P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsInterconnect Solutions Brochure Card Edge Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-086-500-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

307-086 Series

...

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Termination Rows	Color	Contact Material	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Number of Positions	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Gender	Mounting Type	Termination	Read Out	Features	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 307-086-458-203	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Female	Through Hole Right Angle	Solder	Dual
EDAC Inc. 307-086-500-278	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Through Hole	Solder Eyelet(s)	Dual	Card Guides	10 Áin	0.25 Ám
EDAC Inc. 307-086-524-258	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Through Hole	Solder	Dual	Card Guides	10 Áin	0.25 Ám
EDAC Inc. 307-086-524-204	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Through Hole	Solder	Dual		10 Áin	0.25 Ám
EDAC Inc. 307-086-455-202	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Female	Board Edge Straddle Mount	Solder Eyelet(s)	Dual	Card Extender
EDAC Inc. 307-086-524-278	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Through Hole	Solder	Dual	Card Guides	10 Áin	0.25 Ám
EDAC Inc. 307-086-400-208	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Female	Through Hole	Solder Eyelet(s)	Dual
EDAC Inc. 307-086-422-204	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Female	Through Hole	Solder	Dual
EDAC Inc. 307-086-500-202	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Through Hole	Solder Eyelet(s)	Dual		10 Áin	0.25 Ám
EDAC Inc. 307-086-500-201	2	-40 °C	105 ░C	Non Specified - Dual Edge	2	Green	Copper Alloy	Semi Bellows				Polyester Thermoplastic	86	0.156 in	3.96 mm	43	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Through Hole	Solder Eyelet(s)	Dual		10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.84
LCSC	Piece	1	$ 9.57
		200	$ 3.70
		500	$ 3.57
		1000	$ 3.51

Description

General part information

307-086 Series

86 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
