TCH-86-530-W(F)

Active

Floyd Bell Inc

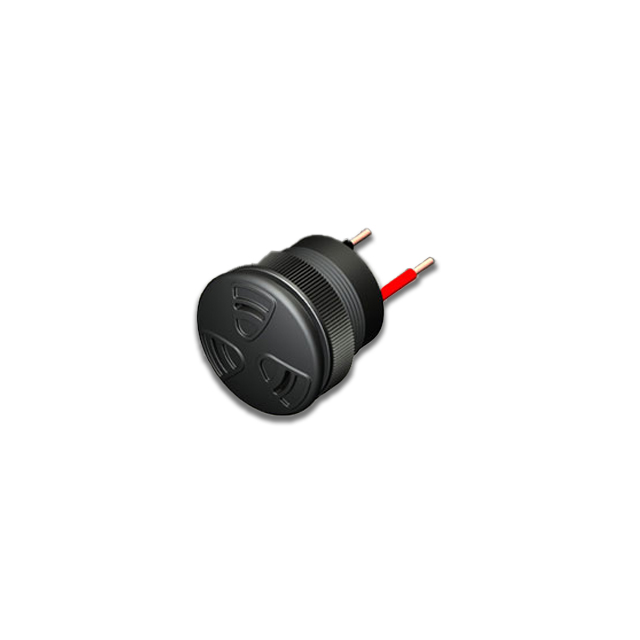

BUZZER PIEZO 33.02MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 33.02MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	TCH-86-530-W(F)

Approval Agency	UR, UL
Current - Supply [Max]	40 mA
Current - Supply [Min]	4 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.9 kHz
Height - Seated (Max) [Max] [z]	1.18 in
Height - Seated (Max) [Max] [z]	29.97 mm
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	DC
Operating Mode	Chime
Port Location	Top
Size / Dimension [diameter]	1.3 in
Size / Dimension [diameter]	33.02 mm
Sound Pressure Level (SPL)	90 dB
Technology	Piezo
Termination	Wire Leads
Voltage Range [Max]	30 V
Voltage Range [Min]	5

Part	Termination	Operating Mode	Approval Agency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Sound Pressure Level (SPL)	Voltage Range [Max]	Voltage Range [Min]	Driver Circuitry	Size / Dimension [diameter]	Size / Dimension [diameter]	Input Type	Current - Supply [Max]	Current - Supply [Min]	Port Location	Ingress Protection	Technology
Floyd Bell Inc TCH-86-530-Q(M)	Quick Connect Tab - 0.250" (6.35mm)	Chime	UL UR	1.18 in	29.97 mm	2.9 kHz	90 dB	30 V	5	Indicator Internally Driven	1.3 in	33.02 mm	DC	40 mA	4 mA	Top	IP68 - Dust Tight Waterproof	Piezo
Floyd Bell Inc TCH-86-530-W(F)	Wire Leads	Chime	UL UR	1.18 in	29.97 mm	2.9 kHz	90 dB	30 V	5	Indicator Internally Driven	1.3 in	33.02 mm	DC	40 mA	4 mA	Top	IP68 - Dust Tight Waterproof	Piezo
Floyd Bell Inc TCH-86-530-S(F)	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	Chime	UL UR	1.18 in	29.97 mm	2.9 kHz	90 dB	30 V	5	Indicator Internally Driven	1.3 in	33.02 mm	DC	40 mA	4 mA	Top	IP68 - Dust Tight Waterproof	Piezo
Floyd Bell Inc TCH-86-530-W(M)	Wire Leads	Chime	UL UR	1.18 in	29.97 mm	2.9 kHz	90 dB	30 V	5	Indicator Internally Driven	1.3 in	33.02 mm	DC	40 mA	4 mA	Top	IP68 - Dust Tight Waterproof	Piezo
Floyd Bell Inc TCH-86-530-Q(F)	Quick Connect Tab - 0.250" (6.35mm)	Chime	UL UR	1.18 in	29.97 mm	2.9 kHz	90 dB	30 V	5	Indicator Internally Driven	1.3 in	33.02 mm	DC	40 mA	4 mA	Top	IP68 - Dust Tight Waterproof	Piezo
Floyd Bell Inc TCH-86-530-S(M)	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	Chime	UL UR	1.18 in	29.97 mm	2.9 kHz	90 dB	30 V	5	Indicator Internally Driven	1.3 in	33.02 mm	DC	40 mA	4 mA	Top	IP68 - Dust Tight Waterproof	Piezo

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.06

General part information

Buzzers Indicator, Internally Driven Piezo 4 ~ 40mA 2.9kHz 90dB @ 30V, 61cm Panel Mount Wire Leads
