109R0824H4021

Obsolete

Sanyo Denki America Inc.

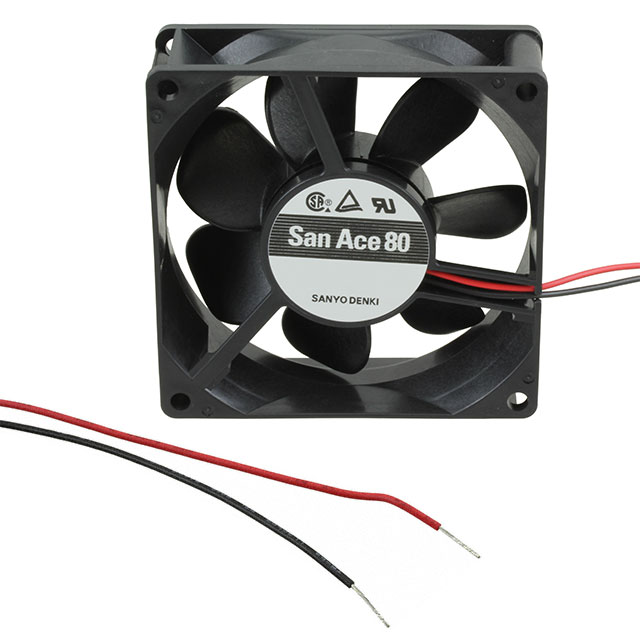

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors

109R0824H4021

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109R0824H4021

Air Flow	1.02 m³/min
Air Flow	36.4 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	70 mA
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	29 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.68 W
RPM	2900 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.142 in H2O
Static Pressure	35.4 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	12 VDC
Weight	0.243 lb
Weight	110.22 g
Width [y]	25 mm

109R0824 Series

Part	Material - Frame	Bearing Type	Weight	Weight	Termination	Fan Type	Current Rating (Amps)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Static Pressure	Static Pressure	Noise	Approval Agency	Material - Blade	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	RPM	Width [y]
Sanyo Denki America Inc. 109R0824F4D011	Plastic	Ball	0.243 lb	110.22 g	3 Wire Leads	Tubeaxial	60 mA	Locked Rotor Sensor	-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC	32.5 CFM	0.91 mł/min	0.114 in H2O	28.4 Pa	26 dB	CSA TUV UL	Plastic	1.44 W	80 mm	80 mm	2600 RPM	25 mm
Sanyo Denki America Inc. 109R0824M401	Plastic	Ball	0.243 lb	110.22 g	3 Wire Leads	Tubeaxial	50 mA	Locked Rotor Protection Speed Sensor (Tach)	-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC	29.3 CFM	0.82 m³/min	0.09 in H2O	22.4 Pa	23 dB(A)	CSA TUV UL	Plastic	1.2 W	80 mm	80 mm	2350 RPM	25 mm
Sanyo Denki America Inc. 109R0824H401	Plastic	Ball	0.243 lb	110.22 g	3 Wire Leads	Tubeaxial	70 mA	Locked Rotor Protection Speed Sensor (Tach)	-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC	36.4 CFM	1.02 m³/min	0.142 in H2O	35.4 Pa	29 dB(A)	CSA TUV UL	Plastic	1.68 W	80 mm	80 mm	2900 RPM	25 mm
Sanyo Denki America Inc. 109R0824S402	Plastic	Ball	0.243 lb	110.22 g	2 Wire Leads	Tubeaxial	100 mA		-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC			0.193 in H2O	48.1 Pa	34 dB(A)	CSA TUV UL	Plastic	2.4 W	80 mm	80 mm	3400 RPM	25 mm
Sanyo Denki America Inc. 109R0824F401	Plastic	Ball	0.243 lb	110.22 g	3 Wire Leads	Tubeaxial	60 mA	Locked Rotor Protection Speed Sensor (Tach)	-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC	32.5 CFM	0.91 mł/min	0.114 in H2O	28.4 Pa	26 dB	CSA TUV UL	Plastic	1.44 W	80 mm	80 mm	2600 RPM	25 mm
Sanyo Denki America Inc. 109R0824S4D01	Plastic	Ball	0.243 lb	110.22 g	3 Wire Leads	Tubeaxial	100 mA	Locked Rotor Sensor	-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC	42.4 CFM	1.19 mł/min	0.193 in H2O	48.1 Pa	34 dB(A)	CSA TUV UL	Plastic	2.4 W	80 mm	80 mm	3400 RPM	25 mm
Sanyo Denki America Inc. 109R0824H4021	Plastic	Ball	0.243 lb	110.22 g	2 Wire Leads	Tubeaxial	70 mA		-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC	36.4 CFM	1.02 m³/min	0.142 in H2O	35.4 Pa	29 dB(A)	CSA TUV UL	Plastic	1.68 W	80 mm	80 mm	2900 RPM	25 mm
Sanyo Denki America Inc. 109R0824M4D01	Plastic	Ball	0.243 lb	110.22 g	3 Wire Leads	Tubeaxial	50 mA	Locked Rotor Sensor	-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC	29.3 CFM	0.82 m³/min	0.09 in H2O	22.4 Pa	23 dB(A)	CSA TUV UL	Plastic	1.2 W	80 mm	80 mm	2350 RPM	25 mm
Sanyo Denki America Inc. 109R0824M402	Plastic	Ball	0.243 lb	110.22 g	2 Wire Leads	Tubeaxial	50 mA		-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC	29.3 CFM	0.82 m³/min	0.09 in H2O	22.4 Pa	23 dB(A)	CSA TUV UL	Plastic	1.2 W	80 mm	80 mm	2350 RPM	25 mm
Sanyo Denki America Inc. 109R0824H4011	Plastic	Ball	0.243 lb	110.22 g	3 Wire Leads	Tubeaxial	70 mA	Locked Rotor Protection Speed Sensor (Tach)	-20 °C	70 °C	-20 C	70 °C	24 VDC	27.6 VDC	12 VDC	36.4 CFM	1.02 m³/min	0.142 in H2O	35.4 Pa	29 dB(A)	CSA TUV UL	Plastic	1.68 W	80 mm	80 mm	2900 RPM	25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.58
		10	$ 14.59
		40	$ 13.99
		80	$ 13.68
		120	$ 13.51

Description

General part information

109R0824 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 36.4 CFM (1.02m³/min) 2 Wire Leads
