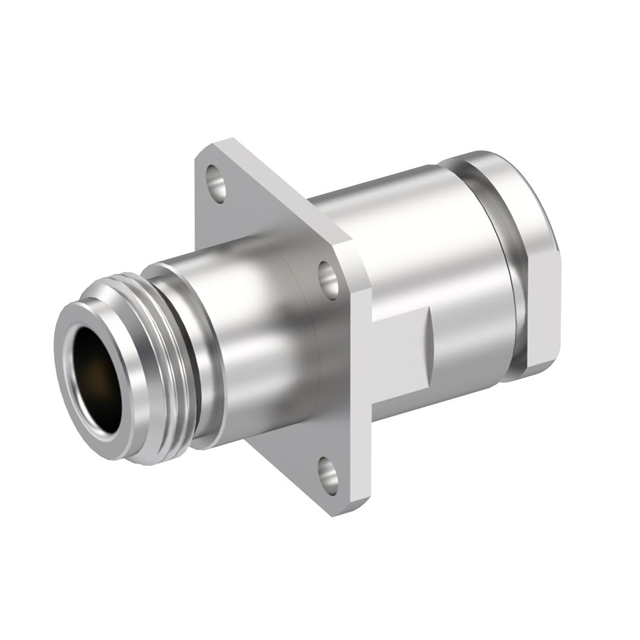

R161270000
ActiveRadiall USA, Inc.
N / STRAIGHT SQUARE FLANGE JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R161270000 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | 144, 225, 214, 393, 165, 213, RG-11, 216 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insertion Loss | 0.15 dB |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Clamp |
| Voltage Rating | 1400 V |
R16127 Series
| Part | Dielectric Material | Contact Termination | Voltage Rating | Shield Termination | Center Contact Plating | Insertion Loss | Center Contact Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Frequency - Max [Max] | Connector Style | Body Finish | Connector Type | Mating Cycles | Housing Color | Impedance | Number of Ports | Ingress Protection | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Solder | 335 V | Solder | Gold | 0.15 dB | Beryllium Copper | Brass | 105 ░C | -55 °C | Flange | 11 GHz | N Type | White Bronze | Female Socket Jack | 500 | Silver | 50 Ohms | 1 | |||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Solder | 335 V | Clamp | Gold | 0.15 dB | Beryllium Copper | Brass | 105 ░C | -55 °C | Flange | 11 GHz | N Type | White Bronze | Female Socket Jack | 500 | Silver | 50 Ohms | 1 | IP67 - Dust Tight Waterproof | ||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Solder | 1400 V | Clamp | Gold | 0.15 dB | Beryllium Copper | Brass | 155 °C | -55 °C | Flange | 11 GHz | N Type | White Bronze | Female Socket Jack | 500 | Silver | 50 Ohms | 1 | IP67 - Dust Tight Waterproof | 144 165 213 214 216 225 393 RG-11 | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Solder | 1400 V | Clamp | Gold | 0.15 dB | Beryllium Copper | Brass | 105 ░C | -55 °C | Flange | 11 GHz | N Type | White Bronze | Female Socket Jack | 500 | Silver | 50 Ohms | 1 | IP67 - Dust Tight Waterproof | RG-401 | 0.25 in |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Solder | 1400 V | Clamp | Gold | 0.15 dB | Beryllium Copper | Brass | 155 °C | -55 °C | Flange | 11 GHz | N Type | White Bronze | Female Socket Jack | 500 | Silver | 50 Ohms | 1 | IP67 - Dust Tight Waterproof | 144 165 213 214 216 225 393 RG-11 | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Solder | 1400 V | Clamp | Gold | 0.15 dB | Beryllium Copper | Brass | 105 ░C | -55 °C | Flange | 11 GHz | N Type | White Bronze | Female Socket Jack | 500 | Silver | 50 Ohms | 1 | IP67 - Dust Tight Waterproof | RG-401 | 0.25 in |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Solder | 335 V | Clamp | Gold | 0.15 dB | Beryllium Copper | Brass | 105 ░C | -55 °C | Flange | 11 GHz | N Type | White Bronze | Female Socket Jack | 500 | Silver | 50 Ohms | 1 | IP67 - Dust Tight Waterproof |
