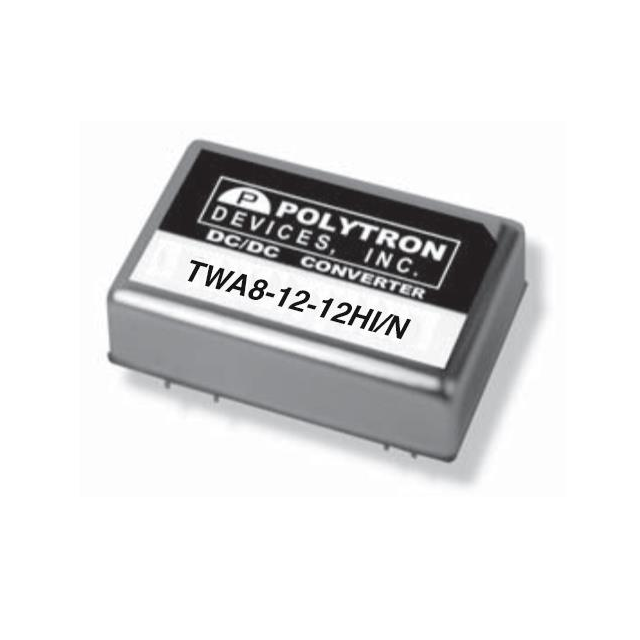

TWA8-12-12HI/N
ActivePolytron
DC DC CONVERTER +/-12V 8W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TWA8-12-12HI/N
ActivePolytron
DC DC CONVERTER +/-12V 8W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TWA8-12-12HI/N |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) | 333 mA |
| Current - Output (Max) | 333 mA |
| Efficiency | 84 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 9 PC Pad |
| Package / Case | 24-DIP Module |
| Power (Watts) | 8 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 65.00 | |
| 10 | $ 59.00 | |||
| 25 | $ 53.25 | |||
| 50 | $ 49.75 | |||
| 100 | $ 47.00 | |||
| 500 | $ 43.50 | |||
Description
General part information
TWA8-12 Series
Isolated Module DC DC Converter 2 Output 12V -12V 333mA, 333mA 9V - 18V Input
