0395066008

Active

Molex

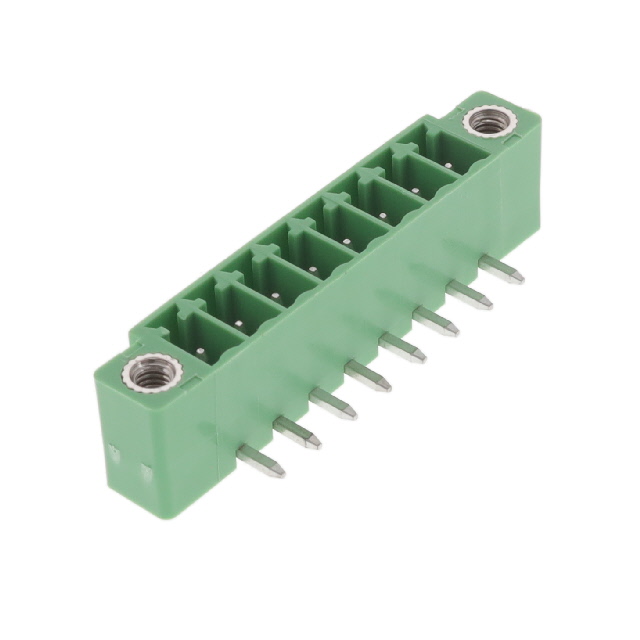

TERM BLOCK HDR 8POS 90DEG 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents39500-001 Prod Spec

0395066008

Active

Molex

TERM BLOCK HDR 8POS 90DEG 3.5MM

Deep-Dive with AI

Documents39500-001 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395066008

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - UL	8 A
Features	Mating Flange
Header Orientation	90°, Right Angle
Insulation Height	0.27 "
Insulation Height	6.86 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	8
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039506 Series

Part	Pitch [x]	Pitch [x]	Contact Mating Finish	Type	Mounting Type	Features	Header Orientation	Material Flammability Rating	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Color	Voltage - UL	Contact Tail Length	Contact Tail Length	Number of Levels	Number of Positions	Termination Style	Insulation Height	Insulation Height	Contact Material	Current - UL	Number of Positions
Molex 0395066502
Molex 0395066507	3.5 mm	0.138 in	Gold	Header Male Pins Shrouded (4 Side)	Through Hole	Mating Flange	90° Right Angle	UL94 V-0	7	-40 °C	105 ░C	Green	300 V	3.5 mm	0.138 in	1	7	Solder	0.27 "	6.86 mm	Brass	8 A
Molex 0395066007	3.5 mm	0.138 in	Tin	Header Male Pins Shrouded (4 Side)	Through Hole	Mating Flange	90° Right Angle	UL94 V-0	7	-40 °C	105 ░C	Green	300 V	3.5 mm	0.138 in	1	7	Solder	0.27 "	6.86 mm	Brass	8 A
Molex 0395061013	3.5 mm	0.138 in	Tin	Header Male Pins Shrouded (4 Side)	Through Hole	Mating Flange	90° Right Angle	UL94 V-0	13	-40 °C	105 ░C	Black	300 V	3.5 mm	0.138 in	1	13	Solder	0.27 "	6.86 mm	Brass	8 A
Molex 0395066014	3.5 mm	0.138 in	Tin	Header Male Pins Shrouded (4 Side)	Through Hole	Mating Flange	90° Right Angle	UL94 V-0	14	-40 °C	105 ░C	Green	300 V	3.5 mm	0.138 in	1	14	Solder	0.27 "	6.86 mm	Brass	8 A
Molex 0395061511
Molex 0395066008	3.5 mm	0.138 in	Tin	Header Male Pins Shrouded (4 Side)	Through Hole	Mating Flange	90° Right Angle	UL94 V-0	8	-40 °C	105 ░C	Green	300 V	3.5 mm	0.138 in	1	8	Solder	0.27 "	6.86 mm	Brass	8 A
Molex 0395066016	3.5 mm	0.138 in	Tin	Header Male Pins Shrouded (4 Side)	Through Hole	Mating Flange	90° Right Angle	UL94 V-0	16	-40 °C	105 ░C	Green	300 V	3.5 mm	0.138 in	1		Solder	0.27 "	6.86 mm	Brass	8 A	16
Molex 0395061006	3.5 mm	0.138 in	Tin	Header Male Pins Shrouded (4 Side)	Through Hole	Mating Flange	90° Right Angle	UL94 V-0	6	-40 °C	105 ░C	Black	300 V	3.5 mm	0.138 in	1	6	Solder	0.27 "	6.86 mm	Brass	8 A
Molex 0395061502

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.28
		10	$ 2.48
		25	$ 2.30
		50	$ 2.07
		100	$ 2.02
		320	$ 1.77
		640	$ 1.62
		1280	$ 1.46
		5120	$ 1.29

Description

General part information

039506 Series

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

39500-001 Prod Spec

Datasheet
