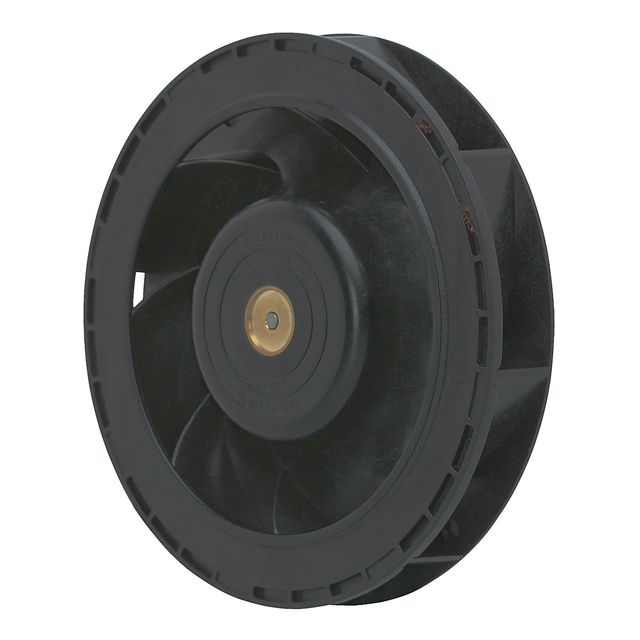

9TM48P4H01

Active

Sanyo Denki America Inc.

FAN IMP MTRZD 100X25MM 48VDC

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN IMP MTRZD 100X25MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	9TM48P4H01

Air Flow	62.5 CFM
Air Flow	1.75 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.22 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	60 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	10.56 W
RPM	6400 RPM
Size / Dimension [diameter]	100 mm
Static Pressure	2.25 in H2O
Static Pressure	560 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Weight	150.14 g
Weight	0.331 lb
Width [y]	25 mm

Part	Fan Type	Termination	Noise	Approval Agency	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Air Flow	Air Flow	Current Rating (Amps)	Size / Dimension [diameter]	Material - Frame	Material - Blade	RPM	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated [custom]	Weight	Weight	Lifetime @ Temp.	Power (Watts)	Features	Static Pressure	Static Pressure
Sanyo Denki America Inc. 9TM48P4H01	Motorized Impellers	4 Wire Leads	60 dB(A)	CSA TUV UL	Ball	-20 °C	70 °C	-20 C	70 °C	25 mm	62.5 CFM	1.75 mł/min	0.22 A	100 mm	Aluminum	Plastic	6400 RPM	60 V	36 VDC	48 VDC	150.14 g	0.331 lb	40000 Hrs	10.56 W	PWM Control Speed Sensor (Tach)	2.25 in H2O	560 Pa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 48VDC Round - 100mm Dia Ball 62.5 CFM (1.75m³/min) 4 Wire Leads
