0191300006

Active

Molex

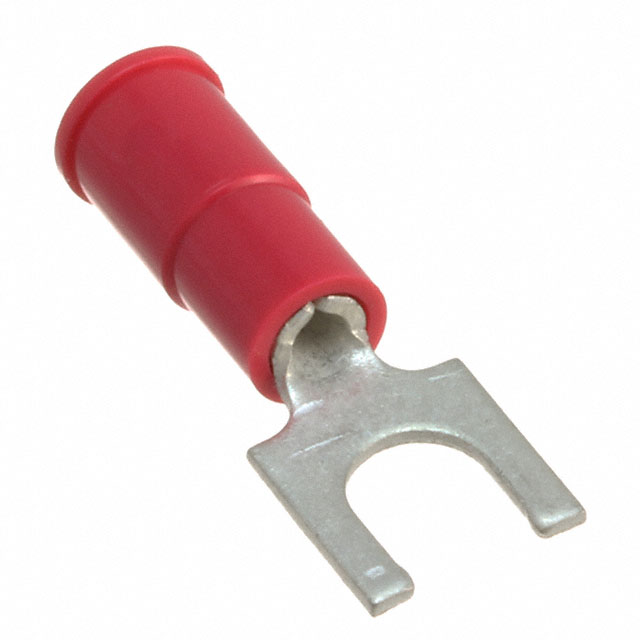

CONN SPADE TERM 18-22AWG #8 RED

Search across all available documentation for this part.

Active

Molex

CONN SPADE TERM 18-22AWG #8 RED

Technical Specifications

Parameters and characteristics for this part

Specification	0191300006

Color	Red
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	21.2 mm
Length - Overall [x]	0.835 in
Length - Ring Center to Termination	5.26 mm
Length - Ring Center to Termination [x]	0.207 in
Length - Termination	0.455 "
Length - Termination	11.56 mm
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	0.173 in
Tongue Inside Opening [x]	4.39 mm
Width - Outer Edges [x]	7.39 mm
Width - Outer Edges [x]	0.291 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Contact Finish	Insulation Diameter	Insulation Diameter [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination	Mounting Type	Stud/Tab Size	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Length - Termination	Length - Termination	Color	Insulation	Material - Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Termination	Stud/Tab Size	Insulation Diameter [diameter]	Length - Termination [custom]	Length - Termination [custom]	Length - Ring Center to Termination
Molex 0191300006	Electro-Tin	3.68 mm	0.145 "	22 AWG	17.5 AWG	0.207 in	5.26 mm	Free Hanging (In-Line)	8 Stud	Standard	21.2 mm	0.835 in	Copper	0.455 "	11.56 mm	Red	Insulated	Poly-Vinyl Chloride (PVC)	7.39 mm	0.291 in	0.173 in	4.39 mm	Crimp
Molex 0191300011	Electro-Tin		0.175 in				5.69 mm	Free Hanging (In-Line)		Standard	21.2 mm	0.835 in	Copper			Blue	Insulated	Poly-Vinyl Chloride (PVC)	6.22 mm	0.245 in	0.146 in	3.71 mm	Crimp	6 Stud	4.45 mm	11.68 mm	0.46 in	0.224 in
Molex 0191300009	Electro-Tin	3.68 mm	0.145 "	22 AWG	17.5 AWG	0.207 in	5.26 mm	Free Hanging (In-Line)		Standard	21.2 mm	0.835 in	Copper	0.455 "	11.56 mm	Red	Insulated	Poly-Vinyl Chloride (PVC)	6.22 mm	0.245 in	0.146 in	3.71 mm	Crimp	6 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG
