H2182-05
ActiveHarwin Inc.

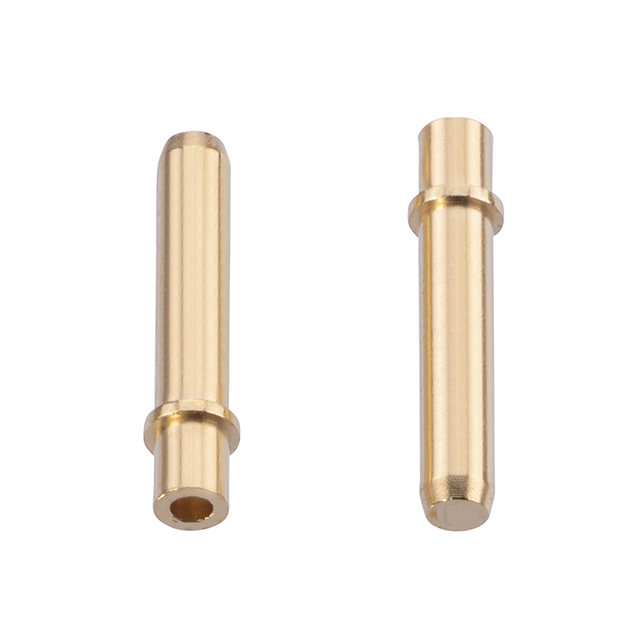

CONN PIN 1.75MM DIA GOLD 8.1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2182-05
ActiveHarwin Inc.
CONN PIN 1.75MM DIA GOLD 8.1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2182-05 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Contact Finish | Gold |
| Contact Material | Brass |
| Flange Diameter [diameter] | 0.089 in |
| Flange Diameter [diameter] | 2.25 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.319 in |
| Length - Above Flange [x] | 8.1 mm |
| Length - Below Flange [x] | 1.95 mm |
| Length - Below Flange [x] | 0.077 in |
| Length - Overall [x] | 0.411 in |
| Length - Overall [x] | 10.45 mm |
| Mounting Hole Diameter [Max] [diameter] | 1.9 mm |
| Mounting Hole Diameter [Max] [diameter] | 0.075 " |
| Mounting Hole Diameter [Min] [diameter] | 1.8 mm |
| Mounting Hole Diameter [Min] [diameter] | 0.071 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.78 mm |
| Pin Size - Above Flange [diameter] | 0.07 in |
| Pin Size - Below Flange [diameter] | 1.78 mm |
| Pin Size - Below Flange [diameter] | 0.07 " |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.58 | |
| 10 | $ 0.50 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.43 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.30 | |||
| 3000 | $ 0.27 | |||
Description
General part information
H2182 Series
PC Pin Terminal Connector Through Hole Gold 0.070" (1.78mm) Dia
