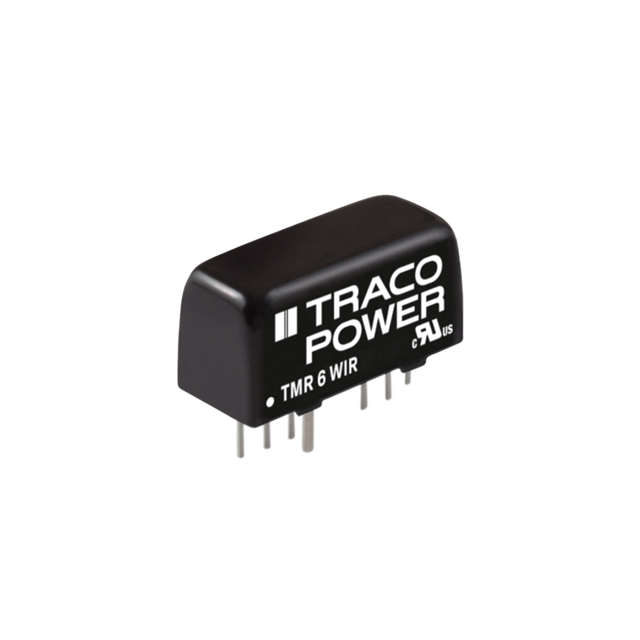

TMR 6-4819WIR

Active

Traco Power

DC DC CONVERTER 9V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMR 6-4819WIR

Active

Traco Power

DC DC CONVERTER 9V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMR 6-4819WIR

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	666 mA
Efficiency	85 %
Features	Remote On/Off, OCP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Power (Watts)	6 W
Size / Dimension [x]	0.86 in
Size / Dimension [x]	21.8 mm
Size / Dimension [y]	0.38 in
Size / Dimension [y]	9.6 mm
Size / Dimension [z]	11.2 mm
Size / Dimension [z]	0.44 "
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	3000 V
Voltage - Output 1	9 V

TMR 6 Series

Part	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Type	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Output 1	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Package / Case	Features	Efficiency	Current - Output (Max)	Current - Output (Max)
Traco Power TMR 6-1221	2	600 mA	-5 V	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	ITE (Commercial)	65 °C	-40 °C	1.6 kV	Isolated Module	6 W	9 V	5 V	Through Hole	18 V	8-SIP Module	7 Leads	Remote On/Off SCP
Traco Power TMR 6-2421WI	2	600 mA	-5 V	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	ITE (Commercial)	71 °C	-40 °C	1.6 kV	Isolated Module	6 W	9 V	5 V	Through Hole	36 V	8-SIP Module	7 Leads	Remote On/Off SCP	84 %
Traco Power TMR 6-4819WIR	1	666 mA		0.86 in	21.8 mm	11.2 mm	0.44 "	0.38 in	9.6 mm	ITE (Commercial) Railway	80 ¯C	-40 °C	3000 V	Isolated Module	6 W	18 V	9 V	Through Hole	75 V	8-SIP Module		OCP Remote On/Off SCP	85 %
Traco Power TMR 6-4812WIR	1	500 mA		0.86 in	21.8 mm	11.2 mm	0.44 "	0.38 in	9.6 mm	ITE (Commercial) Railway	80 ¯C	-40 °C	3000 V	Isolated Module	6 W	18 V	12 V	Through Hole	75 V	8-SIP Module		OCP Remote On/Off SCP	87 %
Traco Power TMR 6-7213WIR	1	400 mA		0.86 in	21.8 mm	11.2 mm	0.44 "	0.38 in	9.6 mm	ITE (Commercial) Railway	80 ¯C	-40 °C	3000 V	Isolated Module	6 W	43 V	15 V	Through Hole	160 V	8-SIP Module		OCP Remote On/Off SCP	86 %
Traco Power TMR 6-0510	1	1.3 A		0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	ITE (Commercial)	65 °C	-40 °C	1.6 kV	Isolated Module	4.3 W	4.5 V	3.3 V	Through Hole	9 V	8-SIP Module	7 Leads	Remote On/Off SCP	77 %
Traco Power TMR 6-0521	2	600 mA	-5 V	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	ITE (Commercial)	65 °C	-40 °C	1.6 kV	Isolated Module	6 W	4.5 V	5 V	Through Hole	9 V	8-SIP Module	7 Leads	Remote On/Off SCP	81 %
Traco Power TMR 6-1212	1	500 mA		0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	ITE (Commercial)	65 °C	-40 °C	1.6 kV	Isolated Module	6 W	9 V	12 V	Through Hole	18 V	8-SIP Module	7 Leads	Remote On/Off SCP	85 %
Traco Power TMR 6-1222	2		-12 V	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	ITE (Commercial)	65 °C	-40 °C	1.6 kV	Isolated Module	6 W	9 V	12 V	Through Hole	18 V	8-SIP Module	7 Leads	Remote On/Off SCP	83 %	250 mA	250 mA
Traco Power TMR 6-2422	2		-12 V	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	ITE (Commercial)	65 °C	-40 °C	1.6 kV	Isolated Module	6 W	18 V	12 V	Through Hole	36 V	8-SIP Module	7 Leads	Remote On/Off SCP	84 %	250 mA	250 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 32.10
		10	$ 29.51
		25	$ 28.53
		50	$ 27.82
		100	$ 27.12
		250	$ 26.22
		500	$ 23.27

Description

General part information

TMR 6 Series

Isolated Module DC DC Converter 1 Output 9V 666mA 18V - 75V Input
