2010-1511-000

Active

Radiall USA, Inc.

SMB M RA BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB M RA BHD

Technical Specifications

Parameters and characteristics for this part

Specification	2010-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Dielectric Material	Mounting Type	Body Material	Contact Termination	Number of Ports	Mating Cycles	Impedance	Body Finish	Center Contact Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Frequency - Max [Max]	Connector Style	Housing Color	Shield Termination	Fastening Type
Radiall USA, Inc. 2010-1511-000	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	Brass	Solder	1	500	50 Ohms	Gold	Brass	Gold	-65 ░C	165 °C	Jack Male Pin	4 GHz	SMB	Gold	Solder	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

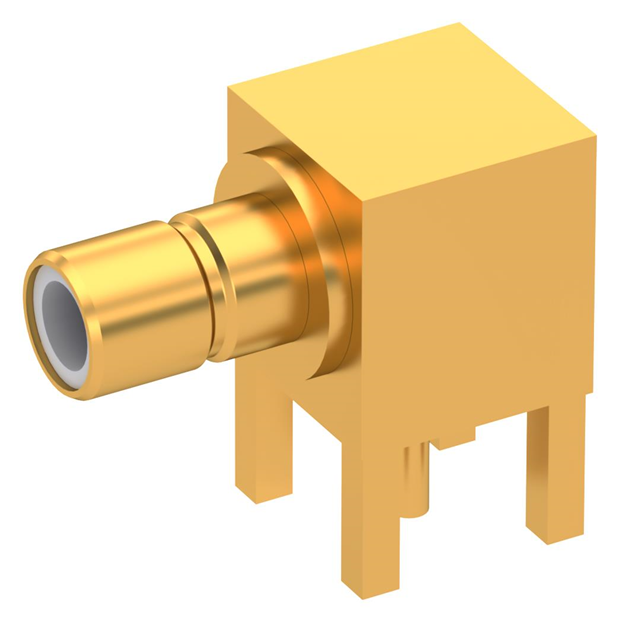

SMB Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
