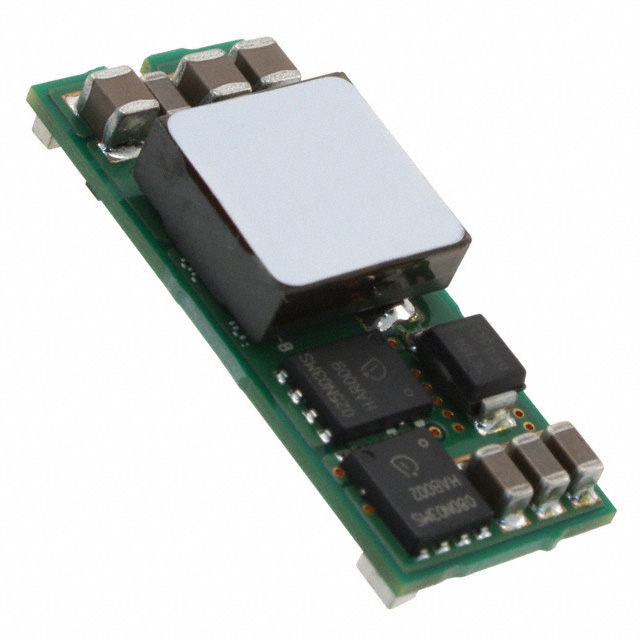

AXB050X43-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 5-15V 50W
Deep-Dive with AI
Search across all available documentation for this part.
AXB050X43-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 5-15V 50W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXB050X43-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 8 A |
| Efficiency | 94 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 13.5 mm |
| Size / Dimension [y] | 0.53 in |
| Size / Dimension [z] | 8.3 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 20 V |
| Voltage - Output 1 [Max] | 15 V |
| Voltage - Output 1 [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 22.06 | |
| 5 | $ 21.89 | |||
| 10 | $ 21.72 | |||
| 25 | $ 21.38 | |||
| 50 | $ 20.36 | |||
| 100 | $ 18.66 | |||
| Digi-Reel® | 1 | $ 22.06 | ||
| 5 | $ 21.89 | |||
| 10 | $ 21.72 | |||
| 25 | $ 21.38 | |||
| 50 | $ 20.36 | |||
| 100 | $ 18.66 | |||
| Tape & Reel (TR) | 250 | $ 18.33 | ||
| 500 | $ 18.05 | |||
Description
General part information
AXB050 Series
Non-Isolated PoL Module DC DC Converter 1 Output 5 ~ 15V 8A 20V - 30V Input
Documents
Technical documentation and resources
No documents available
