Q-3404G0005060I

Active

Amphenol Custom Cable

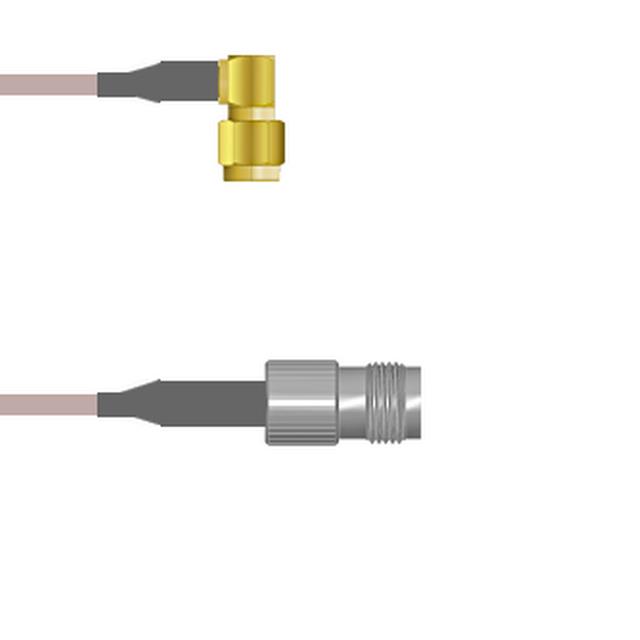

COAX CABLE SMA TO TNC 5'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO TNC 5'

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector Mounting Type	2nd Contact Gender	Length	Length	Style	1st Contact Gender	Overall Impedance	2nd Connector	Cable Type	Cable Impedance	2nd Connector Mounting Type	Frequency - Max [Max]	Connector Impedance	Features	Color	1st Connector	Length
Amphenol Custom Cable Q-3404G00050.5M	Free Hanging (In-Line)	Female	50 cm	19.69 "	SMA to TNC	Male	50 Ohms	TNC Jack	RG-316	50 Ohms	Free Hanging (In-Line)	3 GHz	50 Ohms	Shielded	Copper	Right Angle SMA Plug
Amphenol Custom Cable Q-3404G0005060I	Free Hanging (In-Line)	Female	1.5 m	5 '	SMA to TNC	Male	50 Ohms	TNC Jack	RG-316	50 Ohms	Free Hanging (In-Line)	3 GHz	50 Ohms	Shielded	Copper	Right Angle SMA Plug	5 ft
Amphenol Custom Cable Q-3404G0003108I	Free Hanging (In-Line)	Female	2.7 m	108 in	SMA to TNC	Male	50 Ohms	TNC Jack	RG-174	50 Ohms	Free Hanging (In-Line)	1 GHz	50 Ohms	Shielded	Black	Right Angle SMA Plug	9 ft
Amphenol Custom Cable Q-3404G0005009I	Free Hanging (In-Line)	Female	228.6 mm	9 "	SMA to TNC	Male	50 Ohms	TNC Jack	RG-316	50 Ohms	Free Hanging (In-Line)	3 GHz	50 Ohms	Shielded	Copper	Right Angle SMA Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-316 60.0" (1.5m) 5.0'

Technical documentation and resources

No documents available
