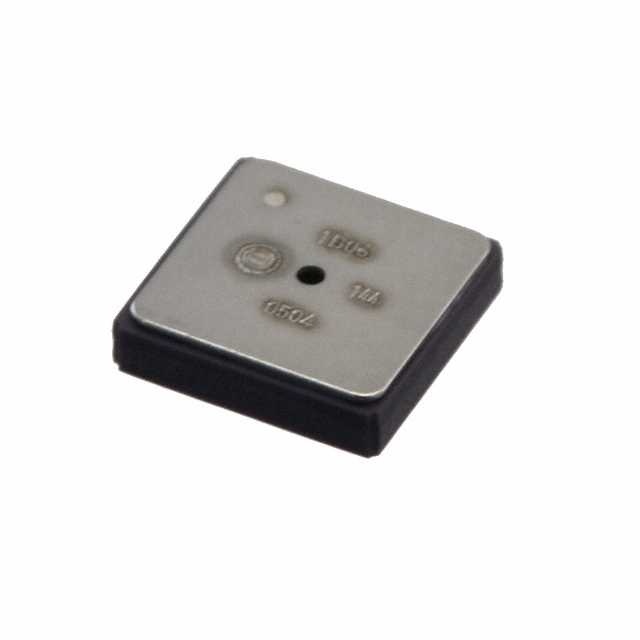

BMP085
ObsoleteBosch Sensortec
SENSOR 15.95PSIA 19BIT 8LCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMP085
ObsoleteBosch Sensortec
SENSOR 15.95PSIA 19BIT 8LCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMP085 |
|---|---|
| Accuracy | 2 % |
| Applications | Board Mount |
| Maximum Pressure | 1000 kPa |
| Maximum Pressure | 145.04 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure [Max] | 15.95 PSI |
| Operating Pressure [Max] | 110 kPa |
| Operating Pressure [Min] | 4.35 PSI |
| Operating Pressure [Min] | 30 kPa |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 19 b |
| Output [Min] | 16 b |
| Output Type | I2C |
| Package / Case | 8-CLCC |
| Port Style | No Port |
| Supplier Device Package | 8-LCC |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BMP085 Series
Pressure Sensor 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) Absolute 16 ~ 19 b 8-CLCC
